Hot Finished / Cold Finished Welded Carbon Steel Pipe Q245B Q345B 16Mn For Fluid
Q245B Q345B 16Mn Hot Finished / Cold Finished ERW Carbon Steel Pipe For Fluid
Specifications:
ERW steel pipe (express resistance welding steel pipe), resistance welding with high production efficiency, low cost, saving materials, easy automation and so on, so it is widely used in aviation, aerospace, energy, electronics, automobile, light industry and other industrial sectors, is one of the important welding process.
| Technical Parameter for ERW Steel Pipe | Tensile Strength | 420-440Mpa |
| Yield Strength 0.2% | 290 | |
| Elongation % | 30 | |
| XT | OK | |
| UT | OK | |
| Water Pressure | OK | |
| IMP | OK | |
| Flat Test | OK | |
| Surface | Painting Marking | |
| Ends | Beveled and Caps | |
| Packing | In bundles | With steel strip |
| Dimension | OD Size | 220-820 mm |
| Thickness | 6-25mm | |
| Length | 6-20m | |
| Certificate | API 5L / ISO | |
Description:
ERW steel pipe is straight weld pipe, electric resistance welding, the abbreviation for ERW for transporting oil and natural gas vapor liquid objects, can meet the requirements of high and low pressure, the transport in the world with pipe sector accounted for a pivotal position.
ERW tube is a "high frequency resistance welded steel pipe", and the common welded pipe welding process is not the same, the welding seam is made from the steel body of the base metal, the mechanical strength is better than the general welded pipe.
20# chemical component
|
Chemical
|
C | Si | Mn | S | P | Cr | Ni | Cu |
| component | 0.17%～0.24% | 0.17%～0.37% | 0.35%～0.65% | ≤0.035% | ≤0.035% | ≤0.25% | ≤0.25% | ≤0.25% |
16Mn C :0.13～0.19 Si :0.20～0.60 Mn :1.20～1.60 Cr≤0.30 P≤0.030 S≤0.030 Ni≤0.30 Cu≤0.25
API5L standard for X52 petroleum pipeline pipe
| Packing | 1.Bundle packing. 2.Marking: as customer’s requirement. 3.Painting varnish coating on the pipe 4.Plastic caps with both ends. |
|
| Dimension | OD Size | 60- 820 mm |
| Thickness | 1.5-40mm | |
| Length | 5.8m, 6m, 11m, 8m, 12m or as your required. | |
| Surface | Black painting,black varnish,transparent oil,hot galvanized, 3PE,epoxy coating,BE,PE,etc. | |
| Application | 1.Low and middle pressure fluid transportation pipeline 2.Casing Tube 3.Boiler pipe 4.Petroleum and natural gas industry 5.Chemistry industry 6.Electric industry |
|
| Supply | 1.seamless steel pipe 2.ERW steel pipe 3.Steel casing 4.Tubing 5.Hot-rolled steel pipe 6.Spiral steel pipe 7.Hot-galvanized steel pipe |
|
ERW pipe due to the use of hot-rolled coil as raw material, uniform wall thickness can be controlled at about +- 0.2mm, the two ends of the steel pipe according to the APL standard and GB / t9711.1 standard, end trimming hit groove, fixed length delivery and other advantages. In recent years, the natural gas pipeline network engineering and gas companies have been widely used ERW pipe as the main pipe network of the city.
Applications:
The pipe is for Fluid transport and Construction mostly used in industries as Coal gas, Steam, Water,
Petroleum, Natural gas.
Competitive Advantage:
Our factory is near to raw material market and high-speed way, the producing cost is low.
Our factory have long history for trading ERW steel pipe, with large stocks.
We always cooperate with famous project and companies.

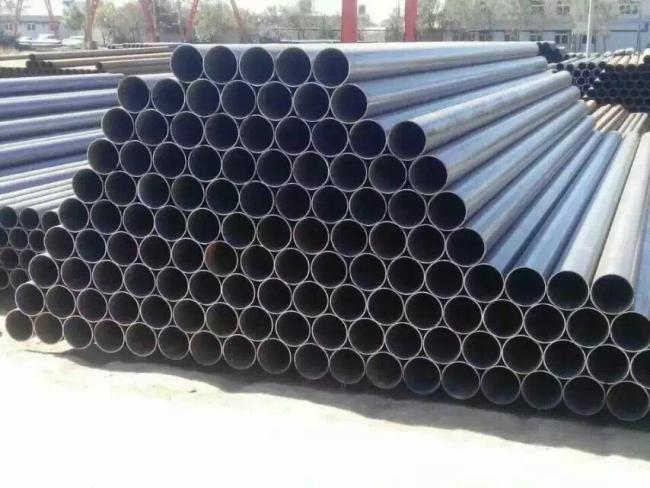

ERW Steel Pipe
