Product  Details

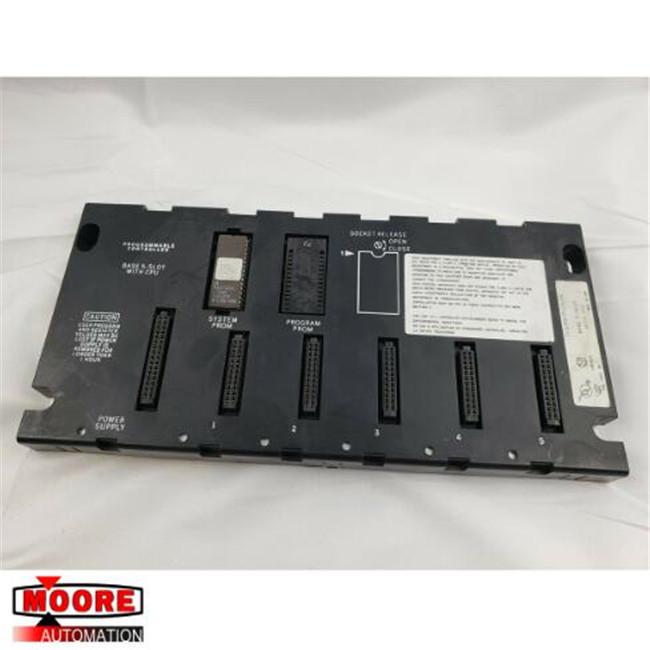

The IC693CPU311 module is a 5-slot rack with an embedded CPU in base manufactured by GE Fanuc. It’s a 16-bit system belonging to the 90-30 series of PLCs with a processor speed of 10 MHz and a registry memory of 1 kilobyte. It comes with 160 Input / Output points with no Floating-point math. Embedded CPUs have the following properties: The CPU type cannot be changed as it is soldered onto the backplane board in the baseplate. Embedded CPUs do not have a time-of-day clock. Since they lack expansion connectors like modular baseplates do, they do not support expansion or remote racks. If power supply is removed or battery disconnected, the CPU has “super” capacitors that store sufficient charge to maintain memory circuits for a while.

It uses a IC693PWR330 high capacity power supply which is connected to an AS693232 SNP serial cable. The IC693PWR330 power supply has a load capacity of 30 Watts output and delivers 120/240 VAC input or 125 VDC output. To test the IC693CPU311, power it on and check for the ‘OK’ light from the LED indicator located at the top of the power supply. If the ‘OK’ indicator fails to come ON, you should know that there’s a problem with the module’s CPU.
