6W RFID Directional Antenna , Antenna Impedance 50Ohm For Fast Food Restaurant Settlement

Price Negotiable
Price: Negotiable
MOQ: 1 Piece
Delivery Time: 3~5 work days
Brand: Andea Electronics
Product Description

13.56MHz RFID Reader Antenna 50Ohm For Fast Food Restaurant Settlement​


Product Introduction:



13.56MHz RFID reader antenna is specifically designed for fast food restaurant for dish management to meet fast settlement demand. It integrates double antennas inside to realize no blind zone and achieve 100% reading rate. This model must be matched with Andea's specified RFID reader to work together. Also, we supply RFID dish and bowls to give you a complete hardware solution for dish mangement.



Product Features:



  • There are two antennas inside the box.
  • It could read the dishes and bowls even overlaping



Technical Specification
Model DA3808-CP
Operating Frequency 13.56 MHz
RF Interface SMA*2
Antenna Impedance 50Ω
Max Support Power 6W
Reading Range Medium Power 40cm
High Power 50cm
Feeder Length 2.5m
Housing Material ABS and Metal Plate
Dimension 525*420*50mm
Weight 4700g




Product Application:

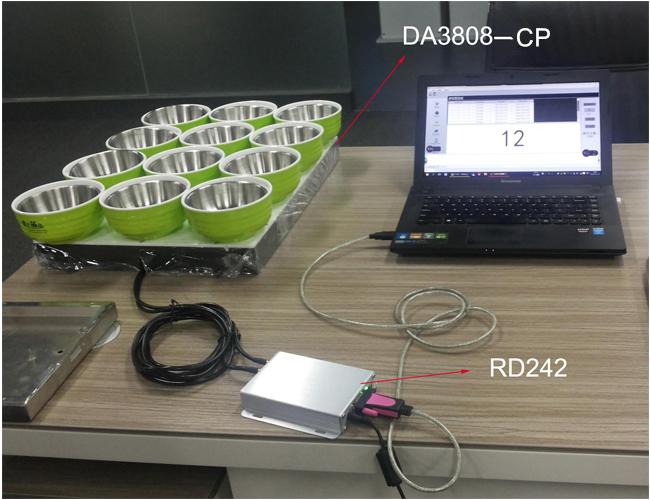

In some fast foods restaurant, especially in hot pot restaurant, to realize self-service function is really important now due to the high human resource cost. We could implant a RFID chip in each dish or bowl, and the tags is already inputed the food price on the dish or in the bowl. So the customers can totally take the foods by one dish or bowl by themselves and after they finish the meal, just put all the dishes and bowls on the dish antenna, then the cost will be calculated quickly. In this way, we do not use many staff and also improve the settlement effiency.
