EFFEMAX Carbide Tipped Rail Track Circular TCT Saw Blade 660mm*6.3/4.8 for Precise Cuts
EFFEMAX Carbide Tipped Rail Track Circular TCT Saw Blade 660mm*6.3/4.8 for Precise Cuts
Rail track cutting alloy circular carbide saw blade TCT saw blade
Tungsten carbide circular saw blade is suitable for use at room temperature, with a dedicated cutting saw supporting the use of a cutting saw blade, the circular saw blade material is 8CrV, 75Cr1, 80CrV2 and other high-quality alloy tool steel through heat treatment, machining processes, To achieve good mechanical properties, in saw blade outer diameter with brazing fine particles or ultrafine particles carbide segments, and then through the precision tooth VOLLER grinding machine grinding out the required tooth profile, According to the different cutting parts, it is generally divided into tube cutting, tube row cutting, rail cutting, non-ferrous metal cutting, steel pipe CNC profiling sawing saw blade, ultra-thin fast cutting saw blade and so on.
TCT saw blade specification
Carbide-Tipped Circular Saw Blade Used for Steel

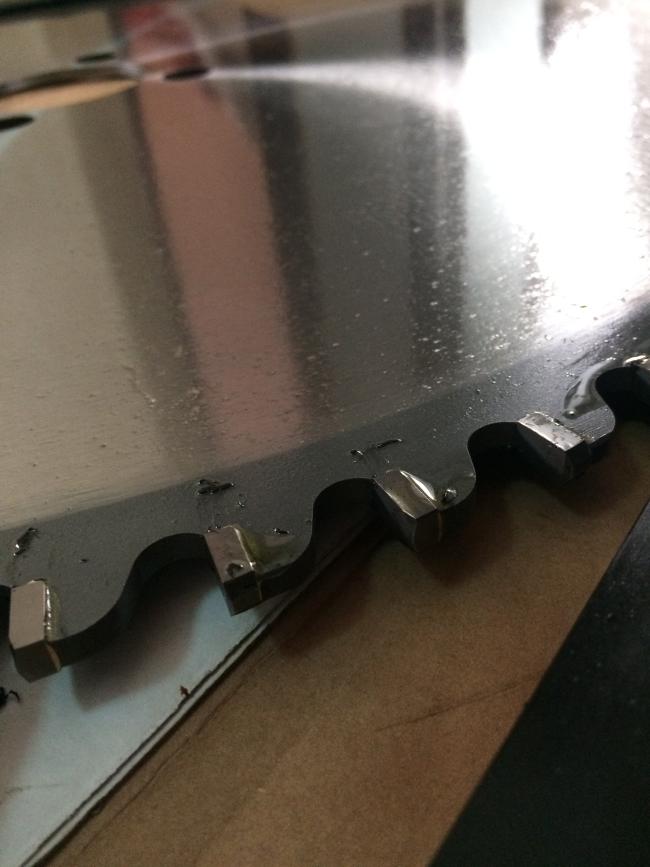

It is a combined-type cutlery, with the carbide tips brazed on the toothholders of the alloy steel made body. It is used by Iron & Steel Plant, Steel Tube Factory, etc. for cutting sections made of carbon steel, alloy steel, cast iron, copper and aluminum, etc. in normal temperature.
A.Carbide Tipped circular Saw Blade (TCT) Used for Round Steel Bar
It is mainly used for cutting round steel bar in the cold condition, the cutting diameter can reach φ450mm. It also can be used for cutting the steel rails of normal temperature and used with various kinds of cutting machines in and abroad.
Unit:mm
| Diameter | Bore Hole | Diameter of Pin Hole | PCD of Pin Holes | Tickness | Cutting width | Number of Teeth |
| φ540 | φ60 | φ22 | φ120 | 5.0 | 6.5 | 60,80 |
| φ830 | φ100 | φ25 | φ200 | 5.5 | 7.0 | 70,100 |
| φ965 | φ100 | φ30 | φ250 | 6.5 | 8.0 | 50,60 |
| φ1080 | φ100 | φ30 | φ250 | 6.5 | 8.0 | 60,80 |
| φ1250 | φ100 | φ30 | φ250 | 7.0 | 8.5 | 50,80 |
| φ1500 | φ100 | φ30 | φ250 | 8.0 | 9.5 | 50,80 |
B.Carbide Tipped Circular Saw Blade (TCT) Used for Seamless Steel Tube
It is mainly used for scaling-off cutting various kinds of tubes in the cooled and straigtened condition after hot rolling by the seamless steel tube factory. The saw blade can cut several steel tubes on a row at a time. It can be used with various kinds of cutting machines in and abroad.
| Diameter | Bore Hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| φ800 | φ80 | φ25 | φ180 | 5.0 | 6.5 | 80,100 |
| φ1020 | φ100 | φ27 | φ200 | 5.5 | 7.0 | 100,120 |
| φ1120 | φ100 | φ30 | φ250 | 5.5 | 7.0 | 130,150 |
| φ1250 | φ100 | φ30 | φ250 | 5.5 | 7.0 | 150,160 |
| φ1400 | φ100 | φ30 | φ250 | 6.5 | 8.0 | 160,180 |
| φ1680 | φ100 | φ30 | φ250 | 8.0 | 9.5 | 160,180 |
Carbide-tipped Circular Saw Blade (TCT) for Steel Tube Profiling Cutting Machines
The saw blade is made of special material and process, and it can be used for cutting large ERW straight welded tube and seamless steel tube. The cutting diameter can reach φ630mm, and the thickness of the tubes can reach 50mm. It has a lot of advantages, such as good cutting quality, energy-saving, safety, noise-reducing, etc. it is an advanced cutting tool which can be used with various kinds of steel tube profiling cutting machines in and abroad.
| Diameter | Bore Hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| φ300 | φ50 | φ15 | φ160 | 2.2 | 2.8 | 50,60 |
| φ355 | φ80 | φ18 | φ160 | 2.5 | 3.3 | 64,72 |
| φ380 | φ115 | φ20 | φ200 | 3.0 | 4.0 | 52,70 |
| φ400 | φ115 | φ20 | φ200 | 3.3 | 4.3 | 52,80 |
| φ450 | φ120 | φ20 | φ225 | 3.8 | 4.8 | 60,80 |
| φ500 | φ120 | φ20 | φ250 | 4.0 | 5.0 | 60,80 |
Carbide-Tipped Circular Saw Blade (TCT) for Aluminum
The blank of the carbide-tipped circular saw blade (TCT) for aluminum is made of Low-alloy tool steel with high quality, and the cutting tip is made of the K series tungsten carbide. the teeth are grinded using the CNC grinding machine produced by Vollmer company in Germany.
A.Carbide-Tipped circular Saw Blade (TCT) for the Bar Material
It is mainly used for cutting aluminum bar materials with different sections for Aluminum processing factory. The cutting diameter can reach φ700mm, and the thickness of the flat aluminum bar can reach 700mm.
| Diameter | Bore hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| φ700 | φ80 | φ18 | φ180 | 4.5 | 6.5 | 64,72 |
| φ810 | φ80 | φ20 | φ200 | 5.0 | 7.0 | 60,72 |
| φ1000 | φ100 | φ20 | φ220 | 5.5 | 7.5 | 72,80 |
| φ1200 | φ100 | φ22 | φ250 | 6.5 | 8.5 | 80,100 |
| φ1600 | φ200 | φ25 | φ300 | 8.5 | 10.5 | 72,80 |
| φ1800 | φ240 | φ30 | φ350 | 10.5 | 14.5 | 60,72 |
| φ2000 | φ240 | φ30 | φ350 | 11.0 | 15.0 | 70,100 |
| φ2200 | φ240 | φ30 | φ350 | 11.5 | 15.5 | 90,120 |
B.Carbide-Tipped Circular Saw Blade (TCT) for Aluminum Sections
It is mainly used for scaling-off cutting the aluminum sections. It can be used with various kinds of extruding production lines whose capability are less than 12.5 thousand tons. The cutting diameter can reach φ700mm.
| Diameter | Bore hole | Diameter of Pin Hole | PCD of Pin Holes | Thickness | Cutting width | Number of Teeth |
| φ350 | φ30 | φ12 | φ80 | 2.2 | 3.2 | 100,120 |
| φ500 | φ32 | φ12 | φ100 | 2.8 | 3.8 | 100,128 |
| φ610 | φ50 | φ15 | φ120 | 4.2 | 5.2 | 90,120 |
| φ800 | φ80 | φ15 | φ150 | 5.5 | 7.0 | 100,120 |
| φ1000 | φ100 | φ18 | φ200 | 6.5 | 8.0 | 120,160 |
| φ1250 | φ100 | φ22 | φ250 | 6.5 | 8.0 | 180,200 |
| φ1400 | φ100 | φ22 | φ250 | 7.0 | 8.5 | 200,220 |
| φ1560 | φ120 | φ25 | φ280 | 8.0 | 9.5 | 220,240 |
| φ1800 | φ150 | φ30 | φ300 | 8.5 | 10.0 | 230,250 |
Note: Saw blades with special sizes can be produced according to the requirement.
