ISO Y Pneumatic Cylinder Clevis , Y Joint Air Cylinder Clevis With Pin / Clip Lock

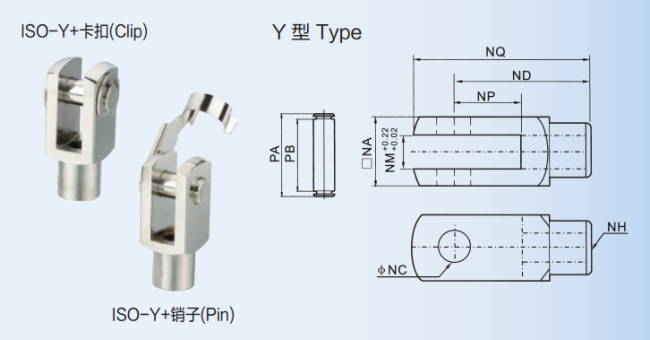

Y Clevis ISO Cylinder Accessory Y Joint with pin and Clip lock type
Pneumatic Air cylinder Accessories CA Single Earring,CB Double Earring,LB Foot Bracket,FA/FB Flange,Y Clevis,Eye Fish Bearing,Float Fitting,I Fitting,SDB Earring,Central Turnion,U clevis
Quick Detail:
* Pneumatic air cylinder accessories
* Various asccessories for mounting and functional application
* Covering full range of air cylinder size from Dia.8mm~dia.400mm
* Aluminum material and casting steel material available
* Easy and fast for operatating to mount onto cylinders
* With good shape by the quality surface treatment
* Special air cylinder accessories can be customize for specific application
Applications:
Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and workpieces.

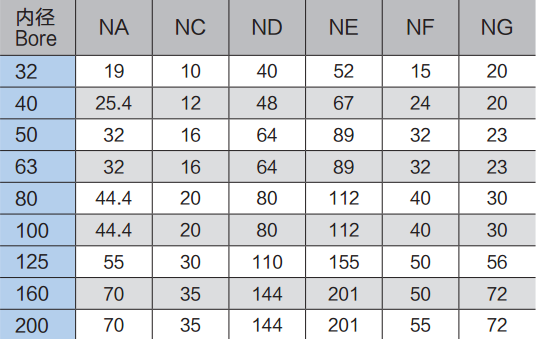

Specification
| NA | NC | ND | NE | NF | NG | |||||||||
| Bore | ||||||||||||||
| 32 | 19 | 10 | 40 | 52 | 15 | 20 | ||||||||
| 40 | 25.4 | 12 | 48 | 67 | 24 | 20 | ||||||||
| 50 | 32 | 16 | 64 | 89 | 32 | 23 | ||||||||
| 63 | 32 | 16 | 64 | 89 | 32 | 23 | ||||||||
| 80 | 44.4 | 20 | 80 | 112 | 40 | 30 | ||||||||
| 100 | 44.4 | 20 | 80 | 112 | 40 | 30 | ||||||||
| 125 | 55 | 30 | 110 | 155 | 50 | 56 | ||||||||
| 160 | 70 | 35 | 144 | 201 | 50 | 72 | ||||||||
| 200 | 70 | 35 | 144 | 201 | 55 | 72 | ||||||||
