China Aluminum Alloy FA / FB Air Cylinder Accessories Flange Black 50 ~ 800mm/S Speed for sale

Aluminum Alloy FA / FB Air Cylinder Accessories Flange Black 50 ~ 800mm/S Speed

Price Negotiable
Price: negotiation
MOQ: 5pcs
Delivery Time: 10~15 working days
Brand: PRIUS,XINYI or OEM
Product Description

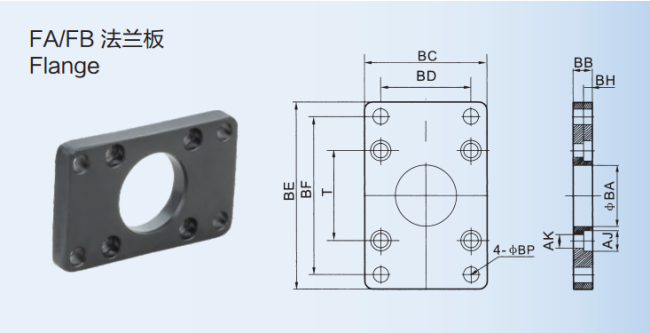

FA / FB Cylinder Accessories Flange Black colour Aluminum Alloy





Specification



  32 40 50 63 80 100 125 160 200
Bore

BA 28.3 32.3 38.3 38.3 47.3 47.3 56 63 81

BB 10 10 10 12 16 16 20 25 25

BC 47 52 65 76 95 115 140 180 220

BD 33 36 47 56 70 84 90 115 135

BE 72 84 104 116 143 162 224 280 320

BF 58 70 86 98 119 138 180 230 270

BH 6.5 6.5 6.5 8.5 10.5 10.5 15 20 20

AJ 10.5 10.5 13.5 13.5 5 5 19 25 25

AK 6.5 6.5 6.5 8.5 10.5 10.5 12.5 16.5 16.5

BP 7 7 9 9 11 11 16 18 22
