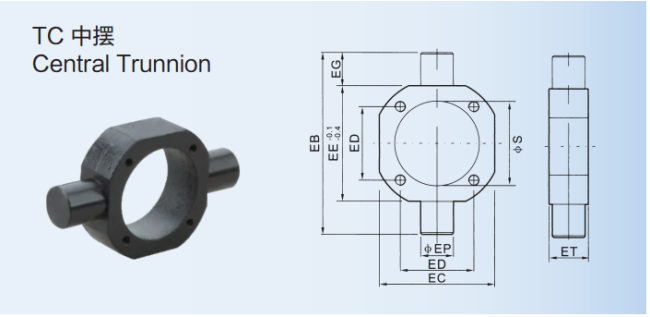

Iron Standard Air Cylinder Accessories black Colour TC Central Trunnion
TC Central Trunnion Standard Cylinder Accessories black colour
Pneumatic Air cylinder Accessories CA Single Earring,CB Double Earring,LB Foot Bracket,FA/FB Flange,Y Clevis,Eye Fish Bearing,Float Fitting,I Fitting,SDB Earring,Central Turnion,U clevis
Quick Detail:
* Pneumatic air cylinder accessories
* Various asccessories for mounting and functional application
* Covering full range of air cylinder size from Dia.8mm~dia.400mm
* Aluminum material and casting steel material available
* Easy and fast for operatating to mount onto cylinders
* With good shape by the quality surface treatment
* Special air cylinder accessories can be customize for specific application
Applications:
Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and workpieces.

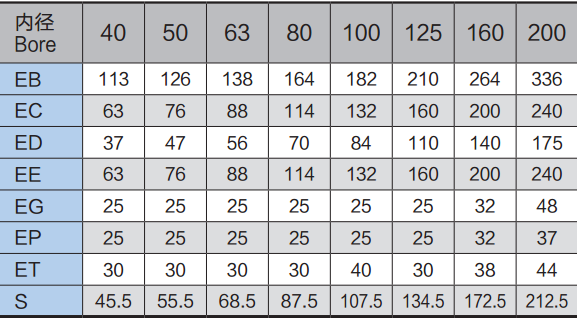

Specification
| 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | ||
| Bore | |||||||||
| EB | 113 | 126 | 138 | 164 | 182 | 210 | 264 | 336 | |
| EC | 63 | 76 | 88 | 114 | 132 | 160 | 200 | 240 | |
| ED | 37 | 47 | 56 | 70 | 84 | 110 | 140 | 175 | |
| EE | 63 | 76 | 88 | 114 | 132 | 160 | 200 | 240 | |
| EG | 25 | 25 | 25 | 25 | 25 | 25 | 32 | 48 | |
| EP | 25 | 25 | 25 | 25 | 25 | 25 | 32 | 37 | |
| ET | 30 | 30 | 30 | 30 | 40 | 30 | 38 | 44 | |
| S | 45.5 | 55.5 | 68.5 | 87.5 | 107.5 | 134.5 | 172.5 | 212.5 |
