SHAKO Type two Elements Air Filter Combination 25μm filter precision with Nylon Cover


U Series air service units including filter,regulator,lubricator and the combination group,port size G1/4”~G1” e.g UFRL-02-D with automatic drainer


Quick Detail:

* U Series air service units
* Aluminum die-casting body material
* Structure piston type
* Modular design,different combination for flexible application
* Port size G1/4”,GT3/8”,G1/2”,G3/4”,G1”
* Pressure range adjustable 0.15~0.85MPa
* Filter fineness 20 Micron standard
* Metal material bowl for option
* With semi-automatic drainer standard,automatic drainer of drainage model function for selection
* Stable design, long service life cycle

Applications:

U series air service units installing between the air compressor and Pneumatic system equipment,close to pneumatic system equipment.
U series air service units including F&R&L(Filter and Regulator and Lubricator) FR&L(Filter regulator and Lubricator), FR(Filter Regulator), F(Filter), R(Regulator), L(Lubricator).
U Series Air service units can maintain steady of the pneumatic system pressure by air regulator,avoid the sudden change of air source pressure to do harm to the pneumatic system components. Filter can be clean the air source,separate the water and other impurity from the air source,thus improve the qaulity of air medium effectly.Lubricator supply lubricant to the pneumatic system to keep system working smooth,significantly extend the service life cycle of pneumatic system components.

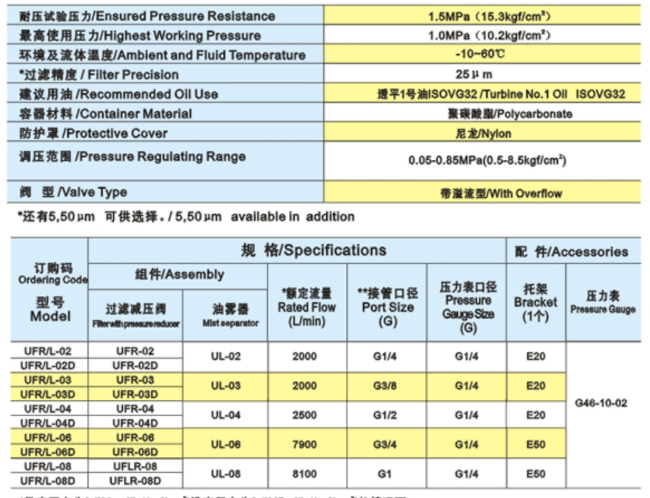

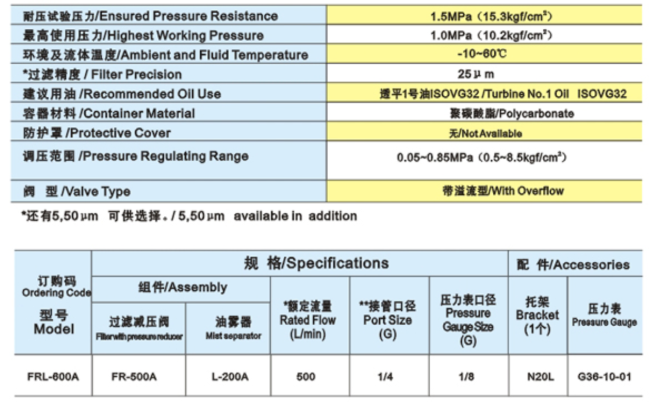

Specification




1, Working Medium:Air source
2, Body material:Aluminum die-casting
3, Filter bowl and Lubricator bowl material:PC
4, Filter element material:Brass
5, Bowl Guard:Reinforced plastic
6, Seal Material:NBR
7, Adjustabing knob:POM
8, Working pressure:0.15~0.85 MPa standard
9, Working Temperature:-10~60℃
10, Filtration fineness:20µ,5µ can be available
11, Mounting type: Pipe mounting
12, Regulator type:Piston type
13, Lubricator type:Oil volume adjustable during working
14, Port size:G1/4”,G3/8”,G1/2”
15, Drainage model: Semi-automatic drainer,automatic drainer
16, Design type:Modular
