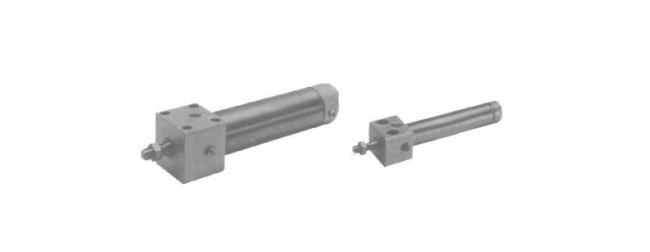

DAB Stainless Steel Slim Air Cylinder With Squareness Cover , Lightened Cylinder

Airtac type stainless steel slim DAB double acting Pneumatic air cylinder with squareness cover Bore size 16mm-40mm e.g. DAB-25-100-2-S with magnet and Rubber buffer

Quick Detail:

* Airtac equvalent stainless steel slim air cylinder with squareness cover

* Mounting model side mounting and face mounting for option,Mounting accessories foot type,flange type,Single U type.

* With magnet, rubber cushion keep from impact,long service life,lower noise

* Adjustable air cushion for bore size 50mm and 63mm

* Stainless steel barrel for anti-corresion and sanitary application

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With self-lubricating bearing,lubrication free

* Bore size 16mm,20mm,25mm,32mm,40mm,50mm,63mm

Ordering Code

DAB	25	100	2	S
DAB:Stainless steel slim cylinder double action with squareness cover	Bore Size	Stroke	Mounting type	S:With magnet
	16:16mm		2:Side mounting
	20:20mm
	25:25mm
	32:32mm		4:Face mounting	Blank: Without magnet
	40:40mm
	50:50mm
	63:63mm

Specification

Bore size(mm)	16	20	25	32	40	50	63
working Medium	Filtered compressed air
Motion Pattern	Double action
Pressure Endurance	1.32MPa					1.03MPa
Operating pressure range	0.04~0.9MPa					0.06~0.7MPa
Ambient Temperature	-0~70ºC
Buffer cushioning	Rubber cushion					Air cushion adjustable
Operating Speed	30~700mm/s					30~500mm/s
Port size	Rc1/8	Rc1/8	Rc1/8	Rc1/8	Rc1/8	Rc1/4	Rc1/4

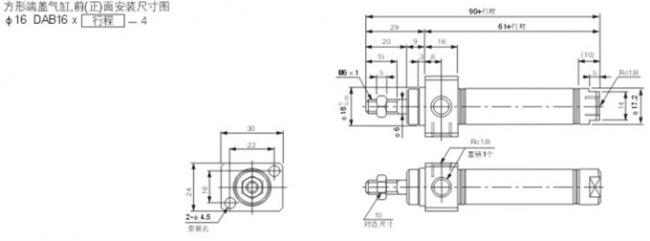

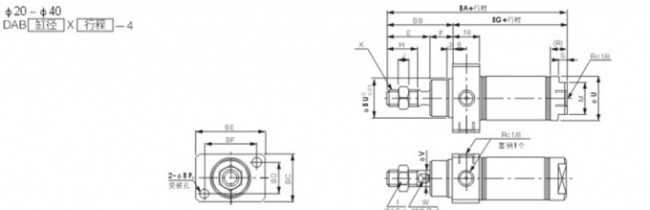

Bore size	C	E	G	H	I	J	K	M	R	S	U
20	53	23	28	15	12	5	M8x1	17	10	5	21.4
25	53	26	30	18	14	6	M10x1.25	19	10	5	26.4
32	54	31	36	23	14	6	M10x1.25	22	11	6	33.6
40	60	31	44	23	19	8	M14x1.5	22	13	6	41.6

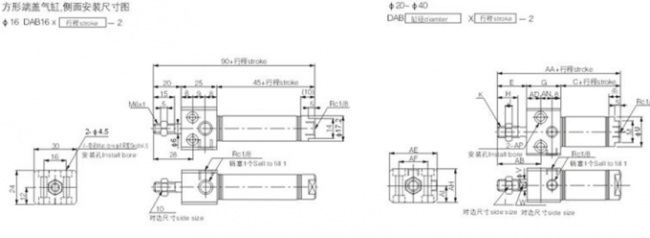

Bore size	V	W	AA	AB	AD	AE	AF	AH	AI	AN	AP
20	8	6	104	34	11	38	22	28	14	9	Ø6.6 Ø11 Depth 6.5
25	10	8	109	38	12	42	26	30	15	10	Ø6.6 Ø11 Depth 6.5
32	12	10	121	45	14	54	34	36	18	14	Ø9.2 Ø14 Depth 8.5
40	16	14	135	48	17	68	46	44	22	19	Ø11.2 Ø17.5 Depth 11

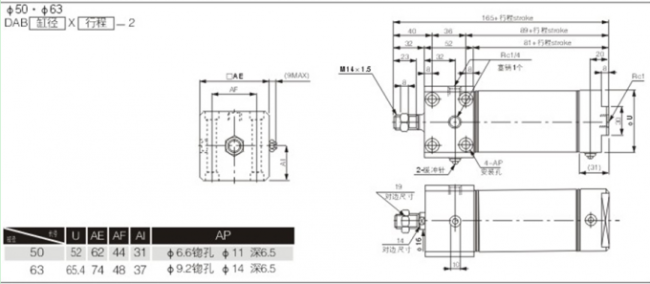

Bore size	E	F	H	I	J	K	M	R	S	U
20	23	12	15	12	5	M8x1	17	10	5	21.4
25	26	14	18	14	6	M10x1.25	19	10	5	26.4
32	31	14	23	14	6	M10x1.25	22	11	6	33.6
40	31	14	23	19	8	M14x1.5	22	13	6	41.6
Bore size	V	W	BS	BB	BC	BD	BE	BF	BP	BU
20	8	6	104	35	28	18	38	28	5.5	22
25	10	8	109	40	30	20	42	32	5.5	24
32	12	10	121	45	36	24	54	42	5.6	28
40	14	14	135	45	44	28	68	52	9	34
