Axial angular contact ball bearings ZKLDF200,Double direction,for screw mounting.sealing shields on both sides.
Model number- ZKLDF200
Inner ring(mm)- 200
Outer ring(mm)- 300
Width(mm)- 45
Weight(Kg)- 11
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Features:
ZKLDF series(four point ball contact),with low frictional ,high rotate accurancy and high limit speed etc. features, can bear higher axial,radial load and with higher tilting rigity.,Main application is the area which need combined load and high precision. E.g machine tool rotary table ,grinding head and other measuring equipment.
Series model No.
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460, ZKLDF580

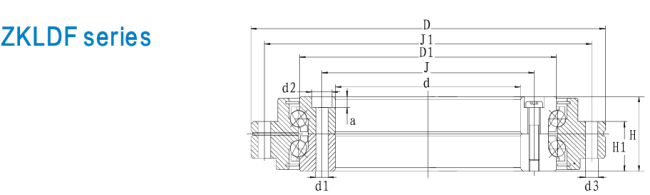

Structure:

ZKLDF series parameters

Related Pictures

Applications :
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
