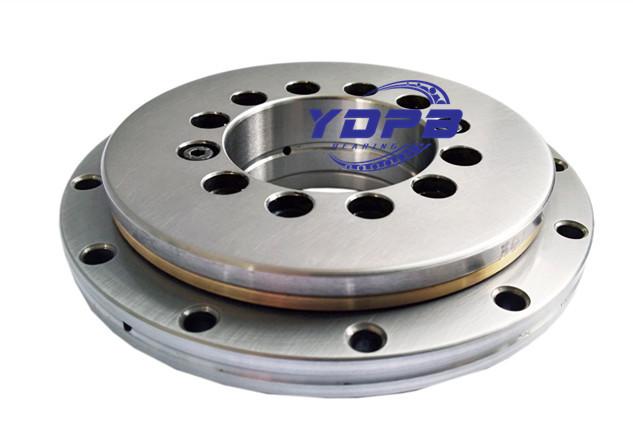

YRC80 slewing ring bearing size 80X146X35mm

Structure:Axial and Radial Bearings

Inside diameters:80mm

Outside diameters:146mm

Height:35mm

Weight:2.4kg

Axial and radial runout:3μm

Many more same structure models:

YRC80,YRC100,YRC120,YRC150,YRC180,YRC200,YRC260,YRC325,YRC395,YRC460

Bearing Features:

1. Superior running accurancy,lower operating temperature and reduced noise through P4/P2 Precision class.

2. Easy bearing selection due to direct competitor interchange.

3. Greater Load-carrying capacity and better bearing stiffness control,thanks to closely controlled preload

4. Oil and grease lubrication is available

5.Bore size ranging from 50mm----1200mm

Application area:

Precision rotation working table,manipulator rotate joints,medical machine,measuring equipments etc

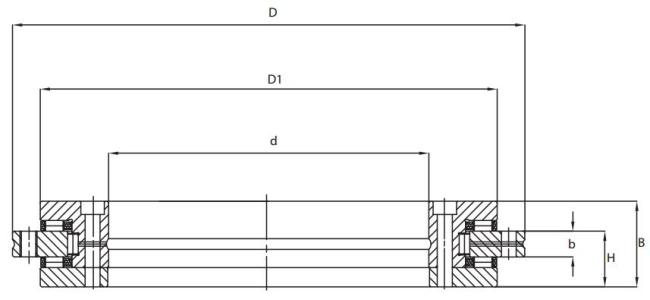

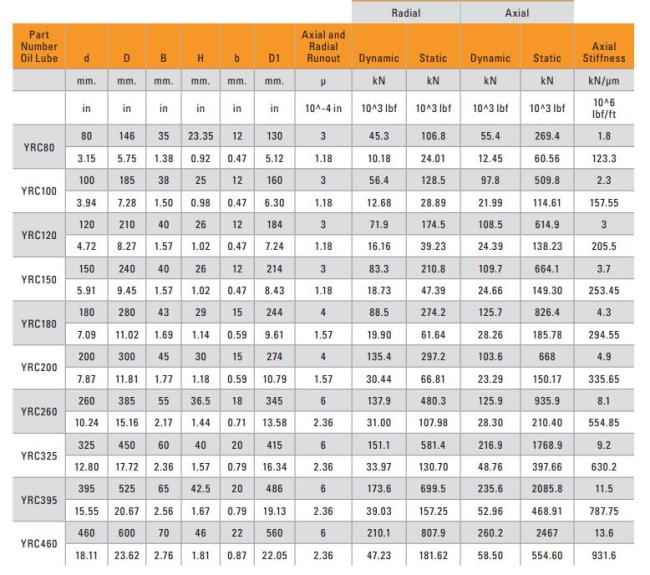

Main parameters

Related pictures

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
