MTE-730 /MTE-730T four point contact ball slewing ring external gear inch Kaydon bearing
Price:
1$
MOQ:
1PCS
Delivery Time:
5-7days
Brand:
YDPB
Product Description
MTE-730 /MTE-730T four point contact ball slewing ring external gear inch Kaydon bearing
- Structure:four point contact ball slewing bearing
- Gear teeth: external
- Seals type:double seals
- Material: 52100/100Cr6/GCr15
- For light duty industrial manipulator or precision robotics.
Series Model NO..
| Model | Outline Dimensions and Weight | Mounting Holes | |||||||||
| Outer Ring | Inner Ring | ||||||||||
| d | D | H | Hi/Ho | G APPROX. | Lo | no | Bo | Li | ni | Bi | |
| (in) | (in) | (in) | (in) | (lbs) | (in) | (in) | (in) | (in) | |||
| MTE-145 | 5.709 | 12.286 | 1.968 | 1.732 | 38 | 10.630 | 16 | 0.562 | 6.890 | 16 | 0.562 |
| MTE-145T | 5.709 | 12.286 | 1.968 | 1.732 | 38 | 10.630 | 16 | 5/8-11 | 6.890 | 16 | 5/8-11 |
| MTE-145X | 5.709 | 12.286 | 1.968 | 1.732 | 38 | 10.630 | 16 | 0.594 | 6.890 | 16 | 0.594 |
| MTE-210 | 8.268 | 14.686 | 1.575 | 1.496 | 38 | 13.190 | 16 | 0.562 | 9.449 | 20 | 0.562 |
| MTE-210T | 8.268 | 14.686 | 1.575 | 1.496 | 38 | 13.190 | 16 | 5/8-11 | 9.449 | 20 | 5/8-11 |
| MTE-210X | 8.268 | 14.686 | 1.968 | 1.732 | 44 | 13.190 | 16 | 0.594 | 9.449 | 20 | 0.594 |
| MTE-265 | 10.433 | 17.086 | 1.968 | 1.732 | 57 | 15.354 | 18 | 0.562 | 11.614 | 24 | 0.562 |
| MTE-265T | 10.433 | 17.086 | 1.968 | 1.732 | 57 | 15.354 | 18 | 5/8-11 | 11.614 | 24 | 5/8-11 |
| MTE-265X | 10.433 | 17.086 | 1.968 | 1.732 | 57 | 15.354 | 18 | 0.594 | 11.614 | 24 | 0.594 |
| MTE-324T | 12.750 | 20.486 | 2.062 | 2.022 | 98 | 18.875 | 20 | 5/8-11 | 14.375 | 20 | 5/8-11 |
| MTE-324X | 12.770 | 20.486 | 2.375 | 2.063 | 99 | 18.875 | 20 | 0.688 | 14.375 | 20 | 0.688 |
| MTE-415 | 16.250 | 24.650 | 2.375 | 2.063 | 132 | 22.250 | 16 | 0.813 | 17.750 | 20 | 0.813 |
| MTE-415T | 16.250 | 24.650 | 2.375 | 2.063 | 132 | 22.250 | 16 | 3/4-10 | 17.750 | 20 | 3/4-10 |
| MTE-470 | 18.500 | 26.900 | 2.375 | 2.063 | 147 | 24.500 | 18 | 0.813 | 20.000 | 24 | 0.813 |
| MTE-470T | 18.500 | 26.900 | 2.375 | 2.063 | 147 | 24.500 | 18 | 3/4-10 | 20.000 | 24 | 3/4-10 |
| MTE-540 | 21.250 | 29.650 | 2.375 | 2.063 | 163 | 27.250 | 24 | 0.813 | 22.750 | 28 | 0.813 |
| MTE-540T | 21.250 | 29.650 | 2.375 | 2.063 | 163 | 27.250 | 24 | 3/4-10 | 22.750 | 28 | 3/4-10 |
| MTE-590 | 23.125 | 33.534 | 2.875 | 2.563 | 283 | 30.625 | 18 | 0.938 | 24.875 | 24 | 0.938 |
| MTE-590T | 23.125 | 33.534 | 2.875 | 2.563 | 283 | 30.625 | 18 | 7/8-9 | 24.875 | 24 | 7/8-9 |
| MTE-705 | 27.750 | 38.201 | 2.875 | 2.563 | 325 | 35.250 | 24 | 0.938 | 29.500 | 28 | 0.938 |
| MTE-705T | 27.750 | 38.201 | 2.875 | 2.563 | 325 | 35.250 | 24 | 7/8-9 | 29.500 | 28 | 7/8-9 |
| MTE-730 | 28.750 | 41.850 | 3.250 | 2.880 | 491 | 38.000 | 20 | 1.063 | 31.000 | 24 | 1.063 |
| MTE-730T | 28.750 | 41.850 | 3.250 | 2.880 | 491 | 38.000 | 20 | 1-8 | 31.000 | 24 | 1-8 |
| MTE-870 | 34.250 | 47.444 | 4.250 | 3.875 | 771 | 43.875 | 24 | 1.188 | 36.250 | 28 | 1.188 |
| MTE-870T | 34.250 | 47.444 | 4.250 | 3.875 | 771 | 43.875 | 24 | 1 1/8-7 | 36.250 | 28 | 1 1/8-7 |
Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:
- Manipulators
- Jib cranes
- Lift-assist devices
- Work positioners
Larger sizes are well suited for:
- Truck-mounted cranes
- Aerial lifts
- Hoists
- Small wind turbines
- Non-precision positioning tables

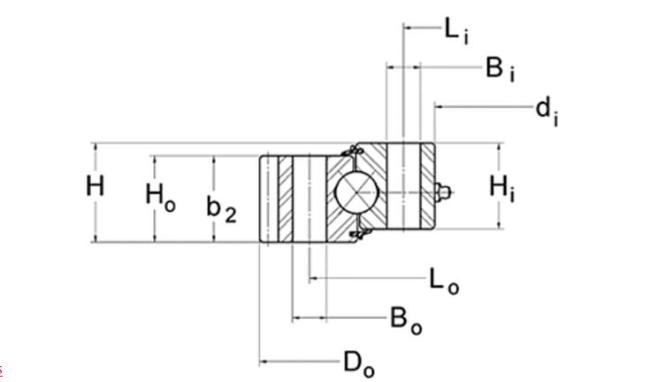

Structure and Parameters:
| Model | Outline Dimensions and Weight | Mounting Holes | |||||||||
| Outer Ring | Inner Ring | ||||||||||
| d | D | H | Hi/Ho | G APPROX. | Lo | no | Bo | Li | ni | Bi | |
| (in) | (in) | (in) | (in) | (lbs) | (in) | (in) | (in) | (in) | |||
| MTE-145 | 5.709 | 12.286 | 1.968 | 1.732 | 38 | 10.630 | 16 | 0.562 | 6.890 | 16 | 0.562 |
| MTE-145T | 5.709 | 12.286 | 1.968 | 1.732 | 38 | 10.630 | 16 | 5/8-11 | 6.890 | 16 | 5/8-11 |
| MTE-145X | 5.709 | 12.286 | 1.968 | 1.732 | 38 | 10.630 | 16 | 0.594 | 6.890 | 16 | 0.594 |
| MTE-210 | 8.268 | 14.686 | 1.575 | 1.496 | 38 | 13.190 | 16 | 0.562 | 9.449 | 20 | 0.562 |
| MTE-210T | 8.268 | 14.686 | 1.575 | 1.496 | 38 | 13.190 | 16 | 5/8-11 | 9.449 | 20 | 5/8-11 |
| MTE-210X | 8.268 | 14.686 | 1.968 | 1.732 | 44 | 13.190 | 16 | 0.594 | 9.449 | 20 | 0.594 |
| MTE-265 | 10.433 | 17.086 | 1.968 | 1.732 | 57 | 15.354 | 18 | 0.562 | 11.614 | 24 | 0.562 |
| MTE-265T | 10.433 | 17.086 | 1.968 | 1.732 | 57 | 15.354 | 18 | 5/8-11 | 11.614 | 24 | 5/8-11 |
| MTE-265X | 10.433 | 17.086 | 1.968 | 1.732 | 57 | 15.354 | 18 | 0.594 | 11.614 | 24 | 0.594 |
| MTE-324T | 12.750 | 20.486 | 2.062 | 2.022 | 98 | 18.875 | 20 | 5/8-11 | 14.375 | 20 | 5/8-11 |
| MTE-324X | 12.770 | 20.486 | 2.375 | 2.063 | 99 | 18.875 | 20 | 0.688 | 14.375 | 20 | 0.688 |
| MTE-415 | 16.250 | 24.650 | 2.375 | 2.063 | 132 | 22.250 | 16 | 0.813 | 17.750 | 20 | 0.813 |
| MTE-415T | 16.250 | 24.650 | 2.375 | 2.063 | 132 | 22.250 | 16 | 3/4-10 | 17.750 | 20 | 3/4-10 |
| MTE-470 | 18.500 | 26.900 | 2.375 | 2.063 | 147 | 24.500 | 18 | 0.813 | 20.000 | 24 | 0.813 |
| MTE-470T | 18.500 | 26.900 | 2.375 | 2.063 | 147 | 24.500 | 18 | 3/4-10 | 20.000 | 24 | 3/4-10 |
| MTE-540 | 21.250 | 29.650 | 2.375 | 2.063 | 163 | 27.250 | 24 | 0.813 | 22.750 | 28 | 0.813 |
| MTE-540T | 21.250 | 29.650 | 2.375 | 2.063 | 163 | 27.250 | 24 | 3/4-10 | 22.750 | 28 | 3/4-10 |
| MTE-590 | 23.125 | 33.534 | 2.875 | 2.563 | 283 | 30.625 | 18 | 0.938 | 24.875 | 24 | 0.938 |
| MTE-590T | 23.125 | 33.534 | 2.875 | 2.563 | 283 | 30.625 | 18 | 7/8-9 | 24.875 | 24 | 7/8-9 |
| MTE-705 | 27.750 | 38.201 | 2.875 | 2.563 | 325 | 35.250 | 24 | 0.938 | 29.500 | 28 | 0.938 |
| MTE-705T | 27.750 | 38.201 | 2.875 | 2.563 | 325 | 35.250 | 24 | 7/8-9 | 29.500 | 28 | 7/8-9 |
| MTE-730 | 28.750 | 41.850 | 3.250 | 2.880 | 491 | 38.000 | 20 | 1.063 | 31.000 | 24 | 1.063 |
| MTE-730T | 28.750 | 41.850 | 3.250 | 2.880 | 491 | 38.000 | 20 | 1-8 | 31.000 | 24 | 1-8 |
| MTE-870 | 34.250 | 47.444 | 4.250 | 3.875 | 771 | 43.875 | 24 | 1.188 | 36.250 | 28 | 1.188 |
| MTE-870T | 34.250 | 47.444 | 4.250 | 3.875 | 771 | 43.875 | 24 | 1 1/8-7 | 36.250 | 28 | 1 1/8-7 |
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
Online shopping Address: www.ydpbbearings.com
