VU140179 turntable bearing 124.5x234x35mm Slewing Ring Bearing Four point contact ball bearing Internal gear teeth

VU140179 turntable bearing 124.5x234x35mm Slewing Ring Bearing Four point contact ball bearing Internal gear teeth
Inner ring(mm)- 124.5
Outer ring(mm)- 234
Width(mm)- 35
Structure:four point contact ball bearing
Gear teeth: without
Seals type:double seals
Material: 50Mn/100Cr6/GCr15

Series Model NO.

VU140179,VU200220,VU130225,VU200260,VU140325,VU250380,VU200405,VU250433

Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

• Manipulators
• Jib cranes
• Lift-assist devices
• Work positioners

Larger sizes are well suited for:

• Truck-mounted cranes
• Aerial lifts
• Hoists
• Small wind turbines
• Non-precision positioning tables

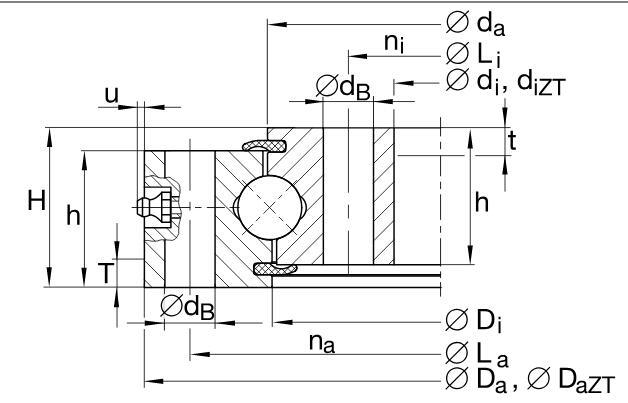

Structure and Parameters:

VU series Four point contact slewing bearing without gear teeth

Drawings and other parameters ,pls contact us free, thanks


Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
