LV600 Series(B Explosion-Proof type)
Introduce:
LV600 series solenoid valve, solenoid valve are suitable for use in conjunction with pneumatic control valve and piston actuator in most of process production. On this occasion, the solenoid valve only plays an auxiliary function, but it is very important. Especially in the process production chain, the solenoid valve plays a very important role, such as open and close state of the process valve when the gas source fails. When the process production safety requires for valve action, most of them need to be controlled by solenoid valves. It is widely used in oil, natural gas and chemical industry and can also meet the application requirements of fast response and high-frequency service life on industrial automation system.
Features:
IEC61508 functional safety standard compliance, TÜV certified Safety Integrity Level SIL3
Direct acting poppet structure
Balance design
Free direction for cable connection
Low power consumption available
Explosion proof & Non-explosion proof operator
Wide pressure ranges and no minimum operating pressure required
Dual flow direction available

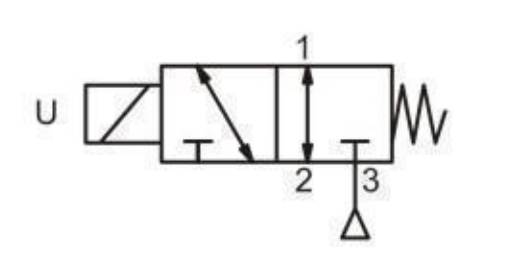

Function:
Technical Specifications:
| ITEM | Single electronic control/dual electronic control |
| PILOT CATEGORY | Direct acting type |
| MEDIA | Gas |
| AMBIENT TEMPERATURE RANGE | -60℃ ~60℃ |
| MEDIA TEMPERATURE | -60℃~ 60℃ |
| OPERATING PRESSURE DIFFERENTIAL | 29 to 145 psi(2.0 to 10 bar) |
| FLOW COEFFICIENT | 1.11Cv(1.06Kv)m³/h 15.92Kw/m-in1/4" 3.85Cv(3.30Kv)m³/h55.00Kw/m-in1/2" 1.11Cv(1.06Kv)m³/h15.92Kw/m-in1/4" 3.85Cv(3.30Kv)m³/h55.00Kw/m-in1/2" |
| VALVE CONSTRUCTION | Direct acting type |
| BODY MATERIAL | Stainless Steel/Aluminium/Stainless Steel |
| APPLICATION ENVIRONMENT | Indoor/Outdoor |
| INSTALLATION | Any Position |
| IP RATED | IP65/IP67 |
| EXPLOSION PROOF APPROVALS | Ex db IIC T6~T3Gb |
Solenoid Operators:
| CLASS OF INSULATION | WATT RATING POWER CONSUMPTION | |
| DC WATTS | AC WATTS | |
| (VA) VA HOLDING | ||
| H | 1.8~6.5W | 1.8~4W |
| Standard Voltage | 24V,36V,48V,110V | 24V, 110V, 220V AC/50Hz, 60Hz |
LV600 BS DFDS SC N 14NG 3 P 1 ST * 24VDC:
| PRODUCT SERIES | LV600 | SERIES LV600 |
| Valve body form and material | BS | Direct acting stainless steel material |
| DFDA | Double chamber explosion-proof aluminum alloy |
|
| COIL CATEGORY | FDA | Explosion-proof aluminum |
| FDS | Explosion-proof stainless steel |
|
| Control mode | SC | Single electric control |
| Electrical interface | N | 1/2"NPT |
| G | G1/2 | |
| M | M20×1.5 | |
| 14NG | 1/4NPT pipe type | |
| 12NG | 1/2NPT pipe type | |
| 14G | 1/4G pipe type | |
| 12G | 1/2G pipe type | |
| Air connection | 14NB | 1/4NPT Namur Type |
| 14GB | 1/4G Namur Type | |
| 12NB | 1/2NPT Namur Type | |
| 12GB | 1/2G Namur Type | |
| Function type | 3 | Two position three-way |
| Power level | P | 3.5W~6W |
| LP | <3W | |
| Manual Operator | P | No manual operation |
| ST | With manual operation | |
| Temperature | ST | Temperature |
| LT | (- 40°℃~+60℃) | |
| CL | (-60°℃~+60℃) | |
| Special | * | Special on Request |
| VOLTAGE | 24VDC 110VDC 220VAC |
Special options are available upon the equipment.
Refer to the product datasheet for details.
