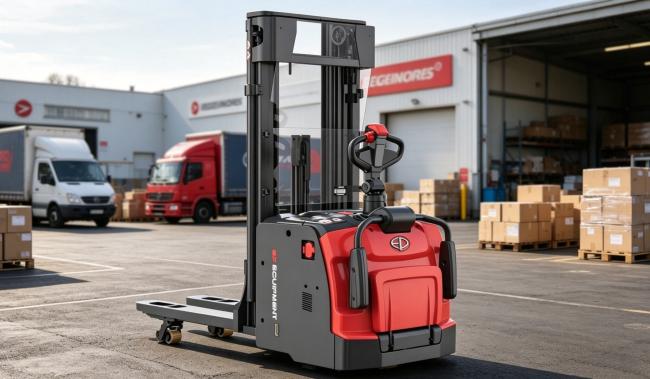

EP RSL 16 PRO | 1600kg Foldable Platform Stacker

Ultra-Compact Lithium Stacker for Narrow Aisles & Long Shifts

Model: RSL 16 PRO   Rated Capacity: 1,600kg

Differentiator: Foldable Suspension Platform + 24V Li-ion Battery + Proportional Electronic Power Steering

 Why the RSL 16 PRO Stands Out

1. Foldable Suspension Platform – Narrow Aisle Champion

Ultra-compact folded length: Only 1,961mm – fits aisles other stackers can’t reach

Shock-absorbing suspension: Smoother ride,reducing operator fatigue over extended shifts.

Aisle width for 1000×1200 cross pallets: Just 2,430mm – maximize storage with extra rack rows

2. 24V Li-ion Battery – 2-Hour Fast Charge + Zero Maintenance

24V 205Ah lithium battery: Full charge in <2 hours (vs. 8–10 hours for lead-acid)

Maintenance-free: No water, no balancing

External plug-and-play charging: No need to open the battery compartment – fast, clean, efficient

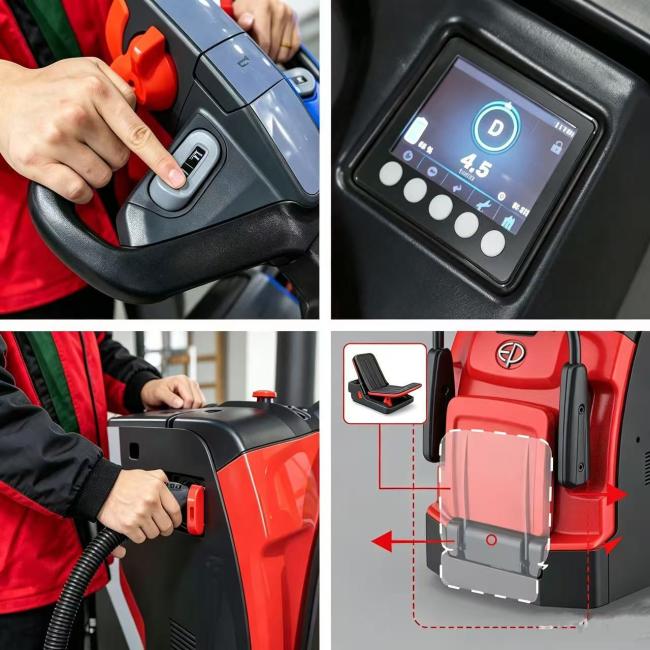

3. Proportional Electronic Steering + Smart Color Display

Precision steering with auto slowdown on turns: Enhancing stability and maneuverability.

Bright color display: Real-time battery level, working hours, diagnostics – zero guesswork

Ergonomic adjustable tiller: Height 1,125–1,361mm – fits all operators

4. Built for Medium-Long Distance Transport

Fast travel speed: 9 km/h (laden) / 11 km/h (unladen)

Low noise level (74dB): Comfortable for all-day operation

Success Story: DHL E-Fulfillment Center, Berlin, Germany

Facility: 1,500㎡ e-commerce warehouse, 1.8m ultra-narrow aisles, 12,000+ daily orders, 2-shift operation (10 hours/shift)

Challenges:

❌️Old walkie stackers were slow and labor-intensive (high labor costs in Germany)

❌️Traditional ride-on stackers were too long for 1.8m aisles, limiting storage capacity

❌️Lead-acid batteries charged slowly and required frequent maintenance, causing night-shift downtime

Solution: Mass deployment of the EP RSL 16 PRO

Results:

✅ Narrow aisle utilization +30%, 3 extra rack rows added, total storage +25%

✅ Operator productivity +45%: 120 → 174 orders/hour, daily throughput up 5,400 orders

✅ 2-hour fast charging perfectly supports 2-shift operation, 98% equipment uptime

✅ Suspension platform reduces fatigue, 22% lower turnover rate, near-zero workplace injuries

Standard Features

l Foldable suspension operator platform

l 24V 205Ah Li-ion battery + external fast charger

l Proportional electronic power steering

l Color display with Bluetooth hourmeter

l Polyurethane drive & load wheels

l USB interface

l Turn speed control + mast height speed reduction

l PIN code operator access

l Lifting electronic limit

 Optional Upgrades

l 280Ah high-capacity Li-ion battery

l 24V 100A fast charger

l Rubber drive wheels

l Audible warning buzzer

l Telematics tracking system

l Card reader access

Keep Up With Industry Trends

The warehousing industry is shifting toward lithium-ion and intelligent equipment. Low-maintenance, long-endurance trucks are replacing traditional lead-acid models to help factories cut costs and boost efficiency. Equipped with smart steering and lithium batteries, our truck fits the upgrading trend and owns lower total operating cost. Contact us for customized solutions and detailed quotations based on your working conditions.
