IPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine
Price:
Contact us for the price
MOQ:
1
Delivery Time:
5-8 work days
Brand:
TAIYI
Product Description
1. Optical characteristics
|
N |
Characteristics |
Test conditions |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
1 |
Operation Mode |
|
|
CW / Modulated |
|
||
|
2 |
Polarization |
|
|
Random |
|
||
|
3 |
Nominal Output Power* |
|
Pnom |
12 |
|
|
kW |
|
4 |
Output Power Tuning Range, lower limit** |
Relative to Pnom |
|
|
5 |
|
% |
|
5 |
Output Power Tuning Range, upper limit |
|
100 |
|
105 |
% |
|
|
6 |
Emission Wavelength |
Output power: 12 kW |
λ |
1068 |
1070 |
1080 |
nm |
|
7 |
Emission Linewidth |
Δλ |
|
5 |
8 |
nm |
|
|
8 |
Switching ON/OFF Time |
|
|
30 |
50 |
μs |
|
|
9 |
Output Power Modulation Rate |
|
|
|
10 |
kHz |
|
|
10 |
Output Power Instability |
Output power: 12 kW Time interval: 1 hour (T=Constant) |
|
|
±1 |
±2 |
% |
|
11 |
Red Guide Laser Power |
|
|
|
0.4 |
0.5 |
mW |

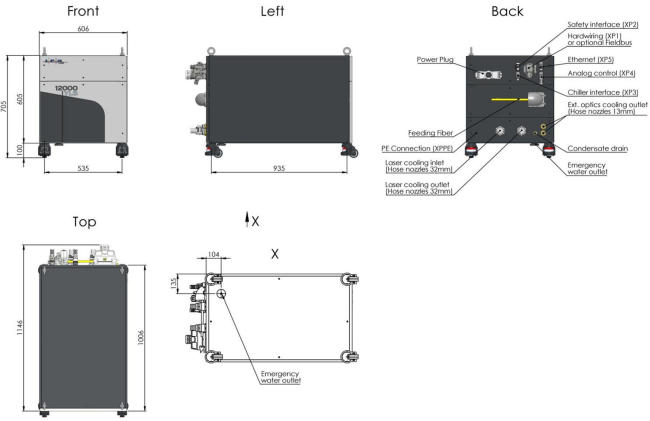

External layout
