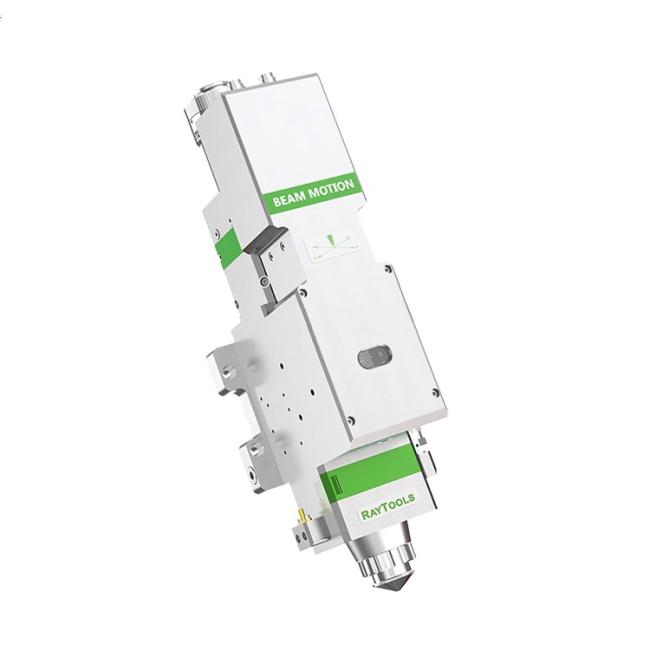

BM111 Auto Focusing Fiber Laser Cutting Parts 22mm Raytools Laser Head
Raytools BM111 Auto Focusing Fiber Laser Cutting Head 22mm Laser Head Sale
BM111 series are auto focusing cutting head, which are released by Switzerland RAYTOOLS AG in 2017. The product has built-in motor drive unit through the linear driver and the focusing lens can automatically change the position in the range of 22mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets. The product can be equipped with D30 lens group to integrate the light beam.The optimization of optical design and the design of water-cooled allows laser heads stably and chronically to work at high power lasers.
| Power Rating | ≤3.3KW |
| Clear Aperture | 28mm |
| Collimator Focal length | 100mm |
| Focusing Focal length | 125mm/155mm/200mm |
| Collimating protective glass | φ24.9mm*1.5mm |
| Focus protective glass | φ27.9mm*4.1mm |
| Auto focus range | +10~-12mm |
| Assist gas Pressure | ≤30bar |
| Weight | ~6.5kg |
Dongguan Changan Taiqi Machine Factory was established in 1980's.Brand is Taiyi.We own two professional factories;Dongguan Taiyi Laser Technology Co.,Ltd:Machine assembing,service inclubing sale&after-sale:Taiyi Laser Hubei Teahnology Co.,LTD:R&D).We are professional in the research,develpment,production and service of Laser Marking Machine,laser welding machine and laser spare parts,such as laser source,marking card,scanner,lens and so on.
