Double - Layer BM240S 2000W CNC Laser Cutting Head
Product Description:
| Brand | Raytools |
| Model | BT240S |
| Power Rating | 0-2KW |
| Clear Aperture | 28mm |
| Collimator protective glass | φ24.9mm*1.5mm |
| Focusing protective glass | φ27.9mm*4.1mm |
| Assist gas Pressure | ≤25bar |
| Contact us for more information | |

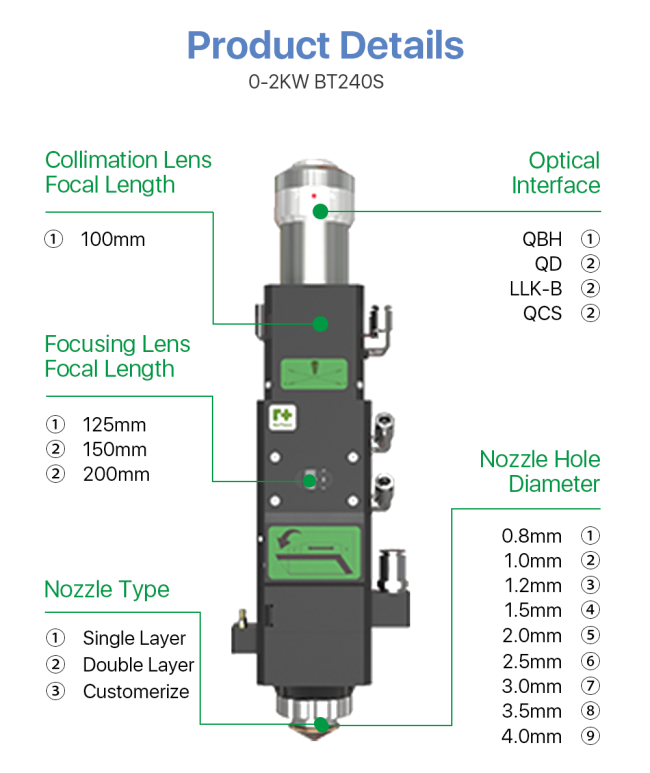

Key feature:
1. Optimized optical configuration, smooth and efficient airflow design,
2. Knob type focus adjustment, high precision and flexibility. adjustment range : 20mm, accuracy: 0.05mm.
3. Drawer type design of protection glass seat, simple and fast to replace protection glass.
4. Built-in ring-blowing and side-blowing structure inside the protection glass seat, offers protection on cutting reflective material, dross flying during piercing on a thick plate.
5. Collimator and focus lens parts both have a water cooling structure, which enables laser head supports laser power up to 4kw.
6. Collimator and focus lens both use the special composite lenses, ensuring high-quality optical beam and cutting.
7. QBH, QD fiber connectors all available, support almost all laser power brands on the market.
8. Modular design, easy maintenance.
Specification:
Support laser power: 500W, 1000W, 1500W, 2000W,
Focus lens option(wave: 1025-1080nm): 100mm, 125mm, 150mm, 200mm(2D).
Optical through aperture: 25mm,
Cutting nozzle: 1.0mm—3.0mm,
Cutting nozzle type: single layer, double-layer, and another customized nozzle.
Gas pressure: Max 30Bar.
Gross weight: 2.5kg.
Collimator:
Focus range option( wave: 1025-1080nm): 60mm, 75mm, 100mm,
Optical through aperture: 28mm,
Fiber connector: QBH, LLK-B, QD.
