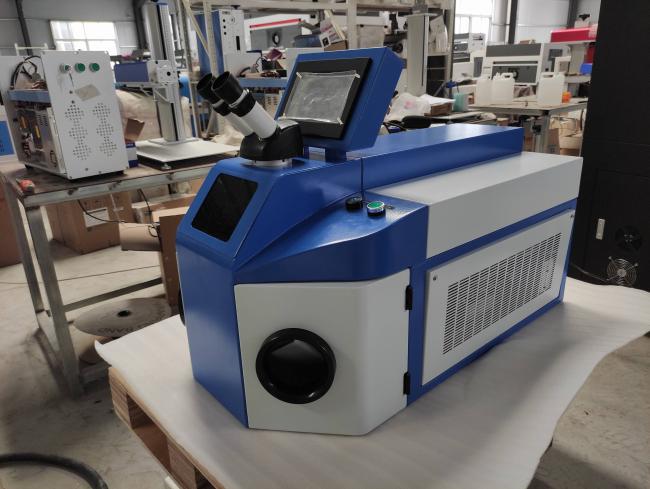

CCD 100W 1064nm YAG Laser Welding Machine For Jewelry
100W Portable Mini Jewelry Laser Welders CCD 1064nm YAG Laser Welding Machines
|
Specification
|
||||
|
Output Power
|
100W
|
|||
|
Single-pulse energy
|
80J
|
|||
|
Machine Design Type
|
Desktop I Vertical
|
|||
|
Laser Source
|
ND: YAG
|
|||
|
Laser Wavelength
|
1064 nm
|
|||
|
Pump lamp
|
Pulsed Xenon Lamp
|
|||
|
Pulse Width
|
0.1.15 ms adjustable
|
|||
|
Pulse Repeated Frequency
|
1 — 20 Hz adjustable
|
|||
|
Welding spot diameter
|
0.2-1.5 mm adjustable
|
|||
|
Observing System
|
Microscope I CCD – based on requirement
|
|||
|
Cooling System
|
Water chiller
|
|||
|
Power Supply
|
Single Phase AC 220V ± 10%, 50Hz I 60HZ, 4 KW
|
|||
|
Running Envment
|
Temperature 5°C-28°C Humidity 5%-70%
|
|||
* Smaller and portable structure, take little space
* Built-in water chiller, easier operation
* Precision weld without surface touch
* Small heat-affected zone,beautiful welding spot.

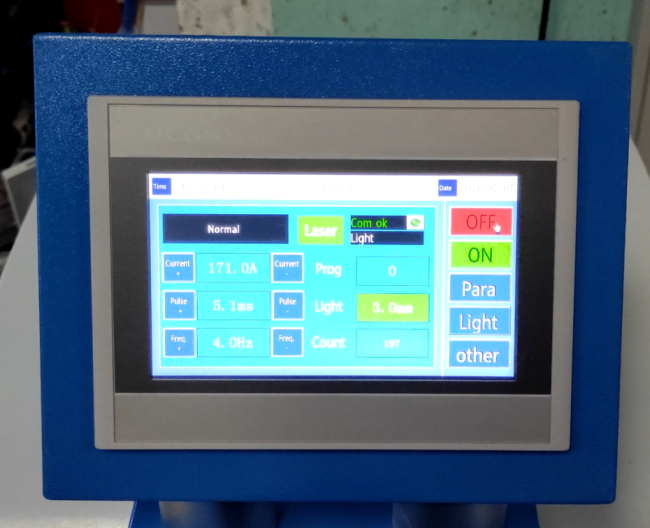

* Laser power, pulse frequency, pulse width and welding spot size can be adjusted.
* Professional metel recycle.
* Healthy, use advanced automatic light shielding system, eliminating light stimulating to eyes.

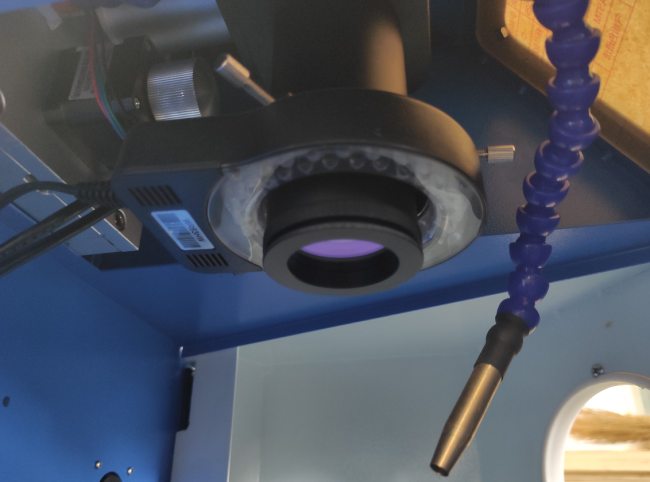

* 10X microscope magnification, cross cursor indicating, the shielding gas output in synchronization with the laser, assure good appearance of solder joint
Application:
Widely used in aviation,aerospace,sporting goods,jewelry,gold
head,medical,equipment,aluminum,alloy denture,instrumentation,electronic,
mechanical processing,automobile and other industries,especislly for gold and
silver jewelry fill holes,spot weld lines,Mosaic forces and claw foot position welding
