Canton Fair Promotion AC380V 4 Axis YAG Fiber Laser Welding Machine For Stainless Steel Shower Head Mould
Price:
Contact us for the price
MOQ:
1 set
Delivery Time:
10-20 working days
Brand:
TAIYI
Product Description

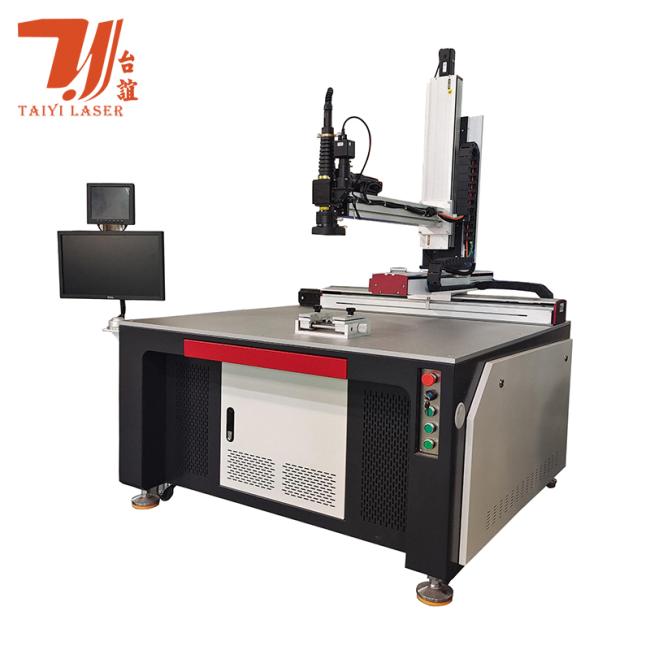

YAG Fiber Transmission 4 Axis Automatic Stainless Steel Shower Head Mould Laser Welding Machine

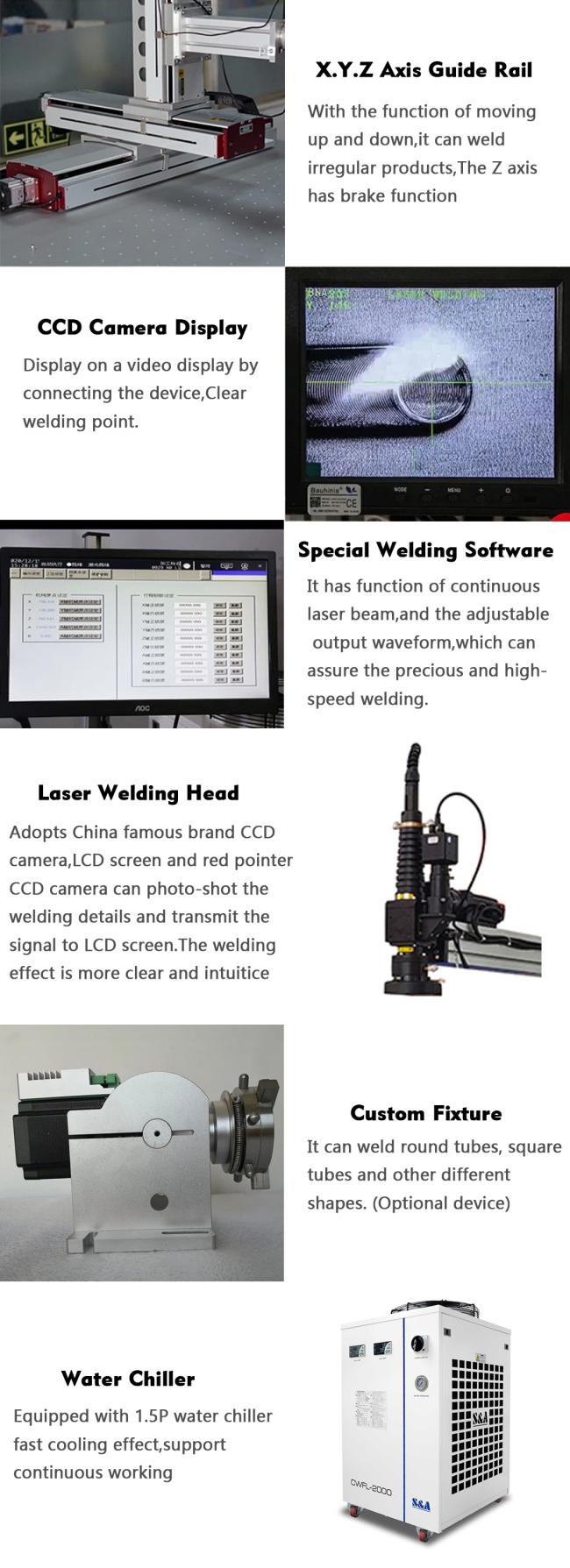

Automatic laser welding is developed and produced by German welding machine technology. It can complete automatic spot welding, but welding stack welding and seal welding by equipped with four-dimensional ball screw table and imported servo control system, aiming at complex plane straight line, arc and any track welding. The machine is easy to operate, the current waveform can be adjusted arbitrarily, the welding accuracy is high, the speed is fast and the effect is good.
| Laser type | YAG |
| Laser power | 200W 400W 600W optional |
| Max.laser peak power | 6KW/10KW/12KW |
| Pulse width | 0.5-15ms |
| Pulse frequency | 1-100Kz |
| Laser split method | enegry or time |
| Power consumption | 6KW/12KW/24KW |
| Power supply | 3-Phase/380V/50hZ |
| Fiber core diameter | 0.3/0.4/0.6mm |
| Number of fiber output | 2/3/4 |
| Fiber model | Mitsubishi GI/SI |
| Dimension | 1600*900*1700mm |
| Weight | About 300Kg |
Application Industry
The mold repair laser welding machine is used to repair set foot part welder parts claw, fill sand holes and small teeth precision components such as batteries with nickel, integrated circuit leads, watches and clocks, kind, austenitic stainless in the fields of electron gun, assembly welder. aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile. Perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

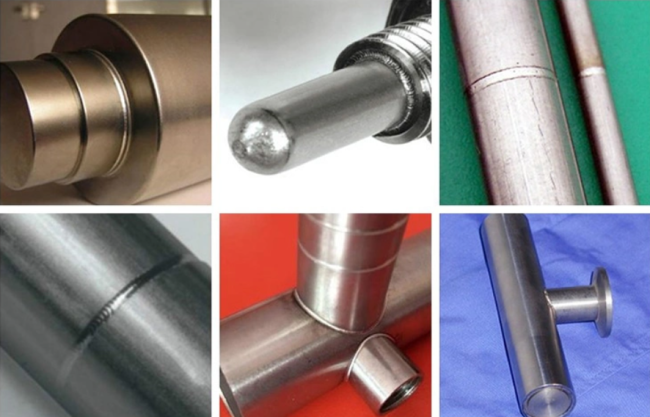

The shape of welding
point, circle, arc and square, etc.
Applicable materials
stainless steel, steel plate, plate and other metal and alloy.
