Double Disc Tube Coiling Machine / Automatic Winding Machine For Plastic Pipe Profile
Double disc tube coiler
It is mainly used for winding PE pipe, alumium pipe, corrugated pipe, and other some pipe or profiles. This plastic tube coiler is highly automatic, and usually work with whole production line.
The plate is controlled by gas; winding adopt torque motor; with special equipment to arrange the pipe, this plastic tube coiler can wind pipe well, and work much stable.
The main model for this plastic tube coiler: 16-40mm single/double plate automatic plastic tube coiler, 16-63mm single/double plate automatic plastic tube coiler , 63-110mm single plate automatic plastic tube coiler.
Characteristics
Compact structure & high automation;
Beautiful appearance & simple operation;
PLC servo controlled high precision pipe arrangement device is optional for users.
Single disk or off-standard winders can be customized.
specification:
| 1. | model: | SPS1200 | SPS1600 | SPS2200 |
| 2. | Winding diameter | 500-1000mm | 550-1500mm | 800-2000mm |
| 3. | Winding speed | 0.5-40m/min | 0.5-40m/min | 0.5-40m/min |
| 4. | Winding width | 300-500mm | 300-500mm | 300-500mm |
| 5. | Winding pipe diameter scope | Ø16-40mm | Ø16-63mm | Ø63-110mm |
| 6. | Air pressure | 0.6mpa | 0.6mpa | 0.6mpa |
| 7. | Torque motor | 10N.M | 10N.M, 25N.M | 25N.M x 2 |
| 8. | Dimension (mm) | 2800×1700×1800 | 3000×2800×2000 | 3000×3200×2000 |
| 9. | Weight | 1000kg | 1500kg | 2000kg |
double disc tube coiler
1. pipe size: 16-110mm
2. wind plate: one or two
3. automatic pipe winder
4. CE&ISO standard

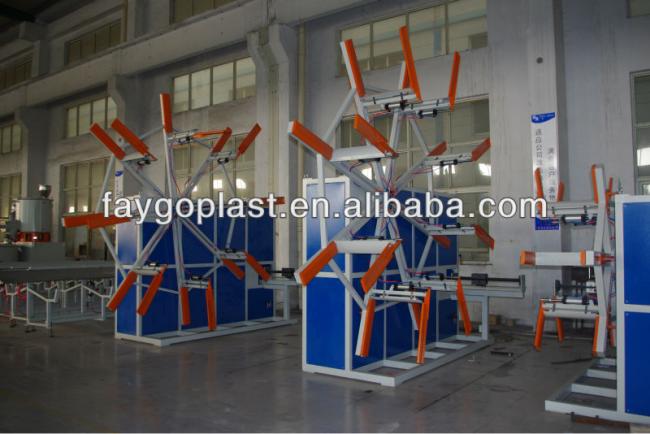

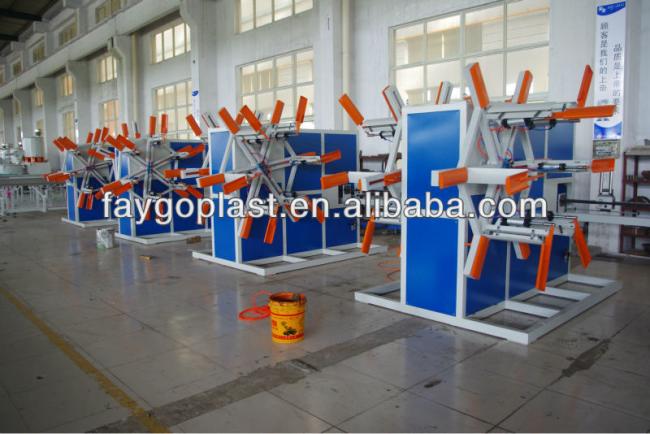

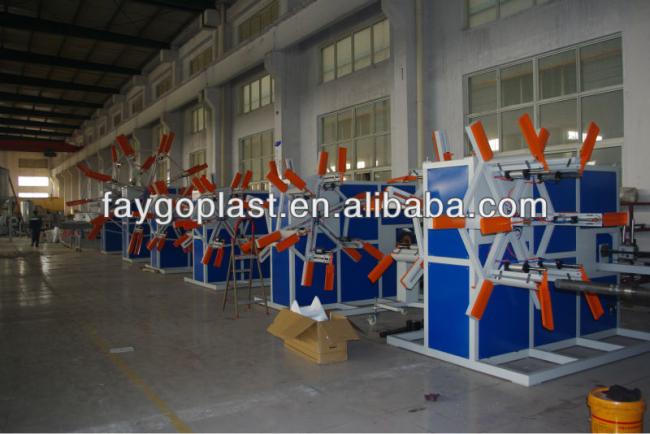

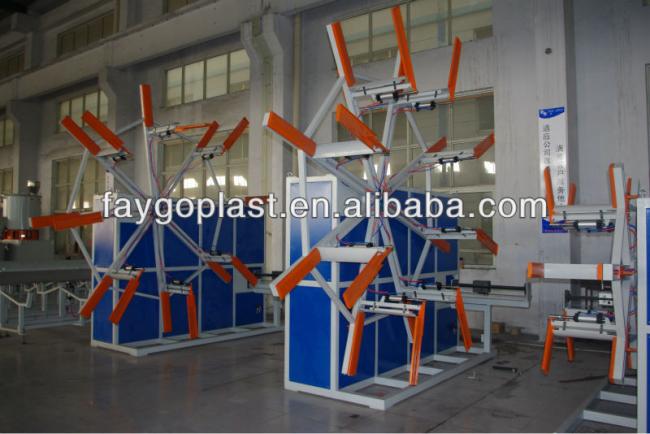

pictures of automatic plastic pipe coiler
