Conical Twin Screw PVC Extruder Machine , Plastic Sheet Extrusion Line 250-380kg/h

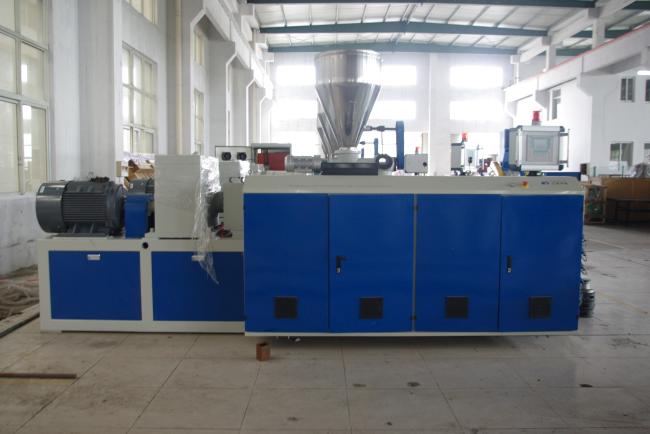

SJSZ-80/156 conical twin screw extruder
1. About product
SJSZ series conical twin screw extruder is mainly composed of barrel screw, gear transmission system, quantitative feeding, vacuum exhaust, heating, cooling and electrical control components Etc. The conical twin screw extruder is suitable for producing PVC products from mixed powder.
Our twin screw extruder can produce kinds of PVC plastics pipes, profiles, sheets, plates, boards, bars, pelletizing and granulation. Excellent performance.
2. About company
We are an industrial manufacture factory which locates in Zhangjiagang city, one hour from Shanghai port, with 200 workers, 16000 m² workshop and more than 10 years experience. The price depends on quality and performance but our clients should be satisfied first. Today our products have been exported to Middle East, Southeast Asia, South America and Europe etc.
|
Model. |
SJSZ45/90 |
SJSZ51/105 |
SJSZ55/110 |
SJSZ65/132 |
SJSZ80/156 |
SJSZ92/188 |
|
Transmission power(kw) |
15. |
18.5 |
22 |
37 |
55 |
110 |
|
Screw diameter(mm) |
Φ45/Φ90 |
Φ51/Φ105 |
Φ55/Φ110 |
Φ65/Φ132 |
Φ80/Φ156 |
Φ92/Φ188 |
|
Screw quantity |
2. |
2 |
2 |
2 |
2 |
2 |
|
Rotation speed(r/min) |
45 |
40 |
38 |
38 |
37 |
36 |
|
Screw Torque Nm |
3148 |
6000 |
7000 |
10000 |
14000 |
32000 |
|
Extrusion Capacity(kg/h) |
70 |
100 |
150 |
250 |
400 |
750 |
|
Center height(mm) |
1000 |
1000 |
1000 |
1000 |
1100 |
1200 |
|
Lx W x H(mm) |
3360x1290 x2000 |
3360x1290 x2100 |
3620x1050 x2200 |
3715x1520 x2450 |
4750x1550 x2460 |
67250x1550 x2500
|
