100hp Screw Type Air Compressor , 10bar Energy Efficient Air Compressor Industrial Use
100hp screw compressor 10bar high quality for industry

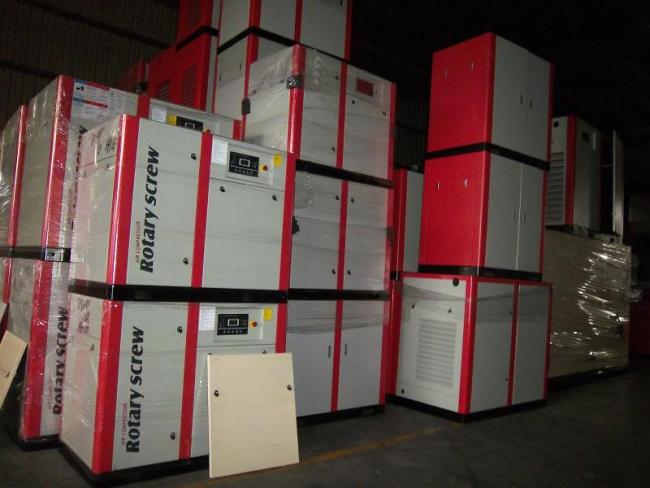

1.PICTURE of 100hp screw compressor 10bar high quality for industry
2.Introduction of 100hp screw compressor 10bar high quality for industry
Full-automatically load and unload control the input air full automatically. Compressor will start automatically when there is no pressure, and will stop working when the pressure is full in air tank. When the compressor is short of electricity, the electricity will be in reverse. When the pressure is too high, the temperature is also high, which can protect itself full-automatically. You can use our compressor without any workers on duty.
3. Main data of 100hp screw compressor 10bar high quality for industry
Completet system
|
Equipment Model |
Free Air Delivery M3/min |
Pressure Bar |
Power KW/HP |
Cooling type |
Size | Weight | Qty |
| YD-100SA | 13 | 8 | 75/100 | Air cooling | 1950*1320*1570 | 1840 | 1 |
| Tank | 2000L | 8 | Design temperature 100℃ |
Dia:1100 High:2772 |
380 | 1 | |
| Oil-water separator | 13 | 8 | Filtration dia:5um |
Dia: 350 High: 1150 |
50 | 1 | |
| Air dryer | 13 | 8 | Normal pressure dew point:-23℃ | 1290*850*1050 | 210 | 1 | |
| Pre-filter | 13 | 8 |
Oil ≤5mg/ m3 Granule dia. ≤3um |
Dia 200, High:520 | 10 | 1 | |
| Precision filter | 13 | 8 |
Oil ≤0.1mg/ m3 Granule dia. ≤0.3um |
Dia 200, High:520 | 10 | 1 | |
| Supper filter | 13 | 8 |
Oil ≤0.01mg/ m3 Granule dia. ≤0.01um |
Dia 200, High:500 | 10 | 1 | |
