Mineral Water PET Bottle Blow Molding Machine Automatic 90KW 250-2000ML
Automatic stable PET blowing machine,FG6,Energy saving,90KW,250-2000ML
Product Description
SMART series of blowing machine fills the gaps in field of domestic high-speed linear blowing machine currently.It has our own intellectual property rights, and has obtained more than 13 national patents. This machine is equipped with automatic perform loading and bottle unloading system. It is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles.
FG6 is composed of three moulds: preform elevator, preform unscrambler and host machine.
|
Technical parameters |
|
|
|
|
|
Type |
FG4 |
FG6 |
FG8 |
|
|
Bottle Specifications |
Mould number(piece) |
4 |
6 |
8 |
|
Max capacity(BPH) |
6500-7200 |
9000-10000 |
12000-13000 |
|
|
maxi volume (mL) |
2000 |
2000 |
2000 |
|
|
maxi height (mm) |
328 |
328 |
328 |
|
|
maxi diameter (mm) |
105 |
105 |
105 |
|
|
preform Specifications |
Suitable inner bottle neck (mm) |
20-25 |
20-25 |
20-25 |
|
preform max length (mm) |
150 |
150 |
150 |
|
|
Electricity |
Total installation power (kw) |
51 |
51 |
97 |
|
Voltage / frequency (V / Hz) |
380v,50hz |
380v,50hz |
380v,50hz |
|
|
Air compressor |
Pressure(bar) |
30 |
30 |
30 |
|
Capacity(m³/min) |
4-6 |
4-6 |
4-6 |
|
|
Mold water |
pressure(bar) |
4-6 |
4-6 |
4-6 |
|
Suitable temperature range (℃) |
6-13 |
6-13 |
6-13 |
|
|
Flow (L / min) |
45 |
45 |
45
|
|
|
Oven water |
pressure(bar) |
4-6 |
4-6 |
4-6 |
|
Suitable temperature range (℃) |
6-13 |
6-13 |
6-13 |
|
|
Flow (L / min) |
22 |
22 |
22 |
|
|
Machine Specification |
host machine dimension (m) (LxWxH) |
3.3X1.2.3 |
4.3X1X2.3 |
4.8X1X2.3 |
|
Weight (Kg) |
3200 |
4000 |
4500 |
|
Main Features
FG4 is a completely new generation of linear blowing machine, distinguished by its high speed, low power and low compressed air consumption, featured by the excellent structure design,small space occupation, less noise and high stability,meanwhile conforms to national beverage sanitary standards,This machine symbolizes the highest level of national linear blowing machines, It Is the ideal bottle making equipment for medium and large enterprises.

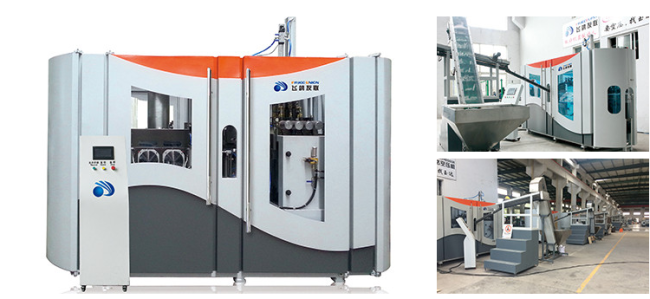

Detailed Images
One Stop Station Services
1) Stand-by engineers team to provide overseas installation and commissioning service.
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3) Lifetime maintenance. After-sales department can provide life long maintenance service.
Packaging & Shipping
Delivery time:
60 days After payment
FG series fully-automatic PET stretch blowing machine 1000-100000BPH
