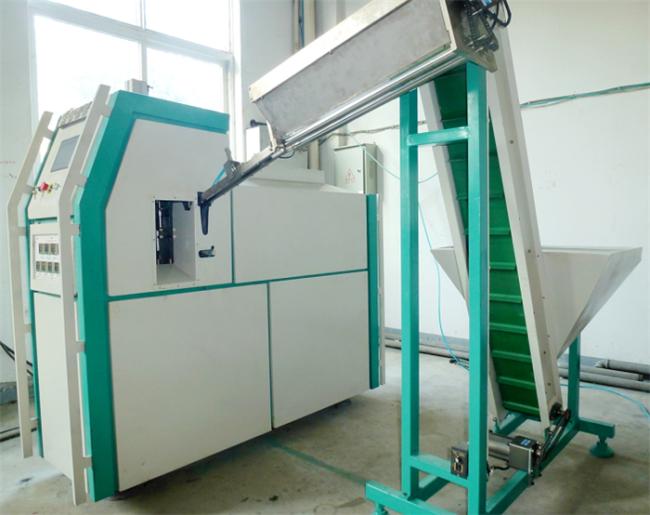

Single Cavity Automatic Blow Molding Machine 1000BPH For Plastic PET Bottle
one cavity 1000BPH PET bottle blowing machine/ bottle making machine
Generally introduction of the FG-A1L blowing machine:
FG-A1L is the firstly stable high speed single cavity automatic blow molding machine in China, just need 1 square meter at your workshop.
Main parameter of the FG-A1L blowing machine:
| Model | Item | FG-A1L |
| Productivity | Depend on the bottle design | 1000-1500BPH |
| Product type | Volumn | Max 1.5L |
| Body diameter | Max 90mm | |
| Height | Max 300mm | |
| Neck diameter | Max 30mm | |
| Mould | Cavity | 1 |
| Mould thickness | 120mm | |
| Main machine power | Rated power | 19.8kw |
| Really use power | 6kw | |
| Electrical power | Customer oriented | |
| Machine | Size(L*W*H) | 1820*600*1680mm |
| Weight | 480kg |
Characteristics of the FG-A1L blowing machine:
We called it three high blow molding machine:
1) It adopts advanced PLC control system and new touch screen and photo electric transducers and far infrared heating system which can help you know and operate the machine very easy.
2) The single cavity capacity can reach 1000-1500bottles/hour.
3) It is competely new design single cavity automatic blow molding in China

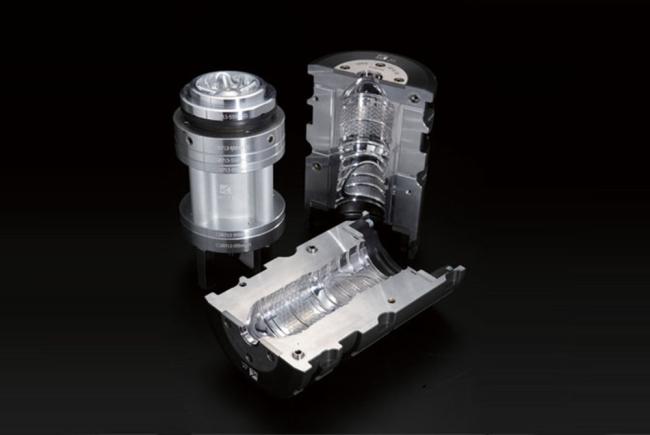

Machine mould:
