TPE Sheet Extrusion Line,Spiral feeding ,energy-saving

1.Product Description

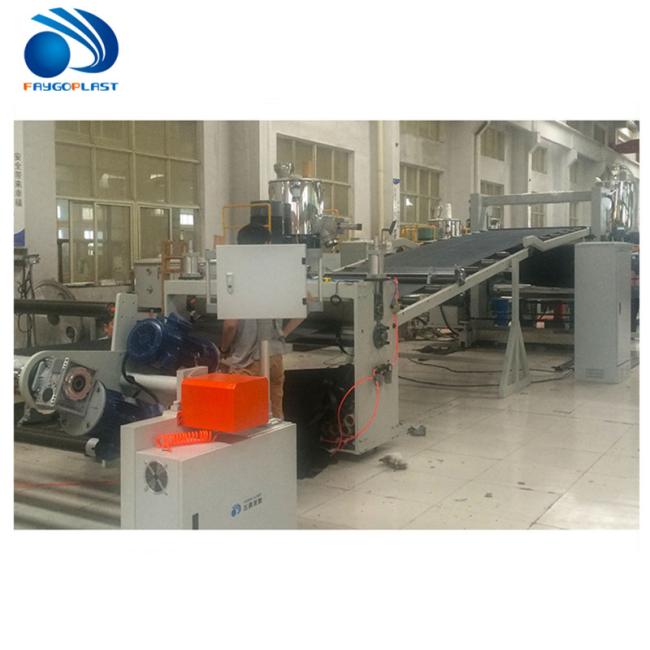

Plastic sheet/board extrusion line usually composed of extruders,screen changes,melt pumps,distributor,T-die,3-roll calendar,cooling frame,haul-off unit,cutting of machine/winder and relative auxiliary machines ,the raw materials are PET, PP,PE,PS,PC,EVA,PVC etc.final products thickness range is 0.2-30mm,width is up to 3 meters,the sheet /board are mainly used for package of food&industry stationary ,electronic and so on industry.

General description:
Exploration situation 380V/3-phaze/50Hz
Material TPE granules
Product dimension Width=1650mm, thickness=2～4mm
Output 200~380kg/h

Configuration List
No. Description of goods Qty
1. Material charger 1 set
2. Hopper dryer 1 set
3. SJ120 Single screw extruder 1 set
4. Hydraulic screen changer, gear pump 1 set
5. Extrusion mould 1 set
6. Three-roller calender 1 set
7. Roller temperature controller 1 set
8. Cooling bracket with trim cutting unit 1 set
9. Roller Haul-off machine 1 set
10. Double position Winder 1 set
11. Spare parts 1 set

Remark:

1. above production line suit for 380V, 50Hz, 3 phase electricity power supply.

2. Port of loading: Shanghai China

3. Port of destination: ~

4. Terms of price: Fob Shanghai, China

5. Terms of Payment: 30% T/T deposit before Production,70% T/T before delivering.

6. Delivery Time: 80 Working Days After receipt of deposit

7. Packing: By Wooden Case or Wooden Base.

8. Grantee: 1 year.

9. Testing: Buyer has to pay all cost in testing when seller arranges engineers to test the equipment, including cost on trip, VISA, salary 100USD per day, accommodation etc.

10. Valid in two month
