Double Station Extrusion Blow Molding Machine for Baby Shampoo Bottles
Product Details :Fully automatic Extrusion blow moulding machine HT(II)-2
TECHNICAL SPECIFICATION
| MAX .product Volume | (L) | 2 |
| Station | Double | |
| Dry cycle | (pc/h) | 900*2 |
| Screw Diameter | (mm) | 60 |
| Screw L/D ratio | (L/D) | 25 |
| Screw drive power | (KW) | 15 |
| Scew heating power | (KW) | 5.04~6.7 |
| No.of heating zone(Screw) | (ZONE) | 3 |
| Output of HDPE | (Kg/h) | 60 |
| Hydraulic pump driving power | (kw) | 5.5 |
| Clamping force | (KN) | 37 |
| Platen Distance | (mm) | 138~368 |
| Mold moving stroke | (mm) | 370 |
| Max.Size of Mold | (W*H)(mm) | 300*320 |
| Capacity of Accumulator head | (L) | |
| Max Die diameter(Single-head) | (mm) | 90 |
| Die heating power (Sing-head) | (KW) | 1.8 |
| No .of heating zone (Single-head) | (ZONE) | 3 |
| Central distance of Bi-head | (mm) | 130 |
| Max .Die diameter(Bi-head) | (mm) | 50 |
| No .of heating zone(Bi-head) | (ZONE) | 5 |
| Heating power (Bi-head)er | (KW) | 2.3 |
| Blowing pressure | (Mpa) | 0.6 |
| Air consumption | (M^3/MIN) | 0.4 |
| Cooling water pressure | (Mpa) | 0.2~0.3 |
| Water consumption | (L/MIN) | 35 |
| Size of machine | (L*W*H)(m) | 3.2*2.12*2.55 |
| Weight of machine | TON | 3.9 |
Packaging & Shipping
Packaging Details: Wooden Box, PE Film, Wooden/ steel base
Delievery Details: Shipping or train
Our Services
Engineers available to service machinery overseas
Company Information
TONGDA Machinery is dedicated to the research & development of extrusion blow molding machine ,with annual production capability
550 sets.For the fifteen years ,we have provided more than 2600 sets of all specification of automatic blow molding machines,for chemicals packing medicine packaging ,beverage bottle ,lubricant oil packing industry ,blow plastic parts for automobile .
Always,we provide best service and quality for our customers .We firmly believe only best product can win our honour .

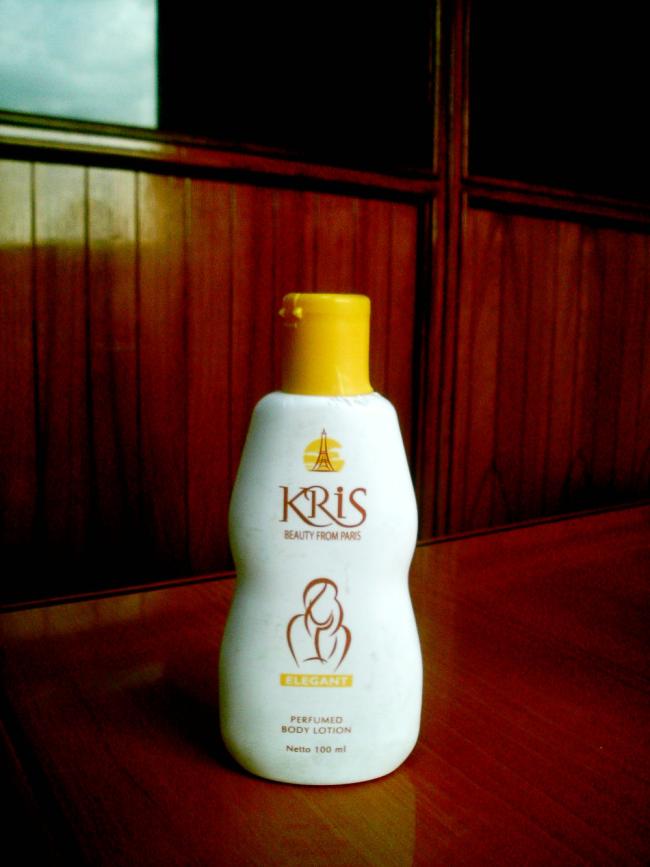

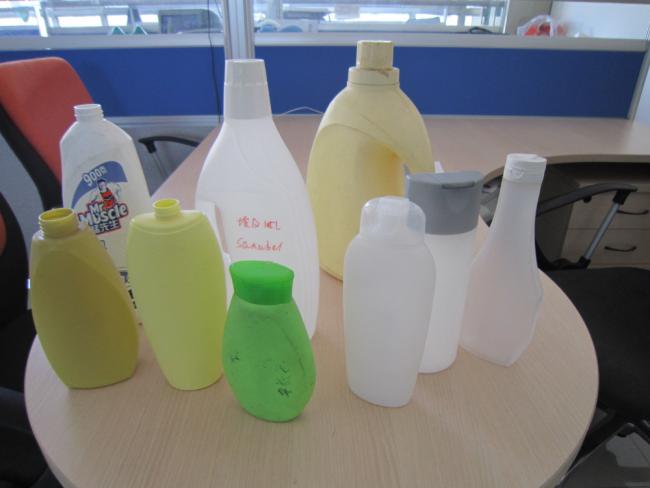

Some pictures of our sample:
