Two Station Plastic Blow Molding Machine For Detergent Bottle Angle Neck Bottle
Two Station Plastic Blow Molding Machine For Detergent Bottle Angle Neck Bottle

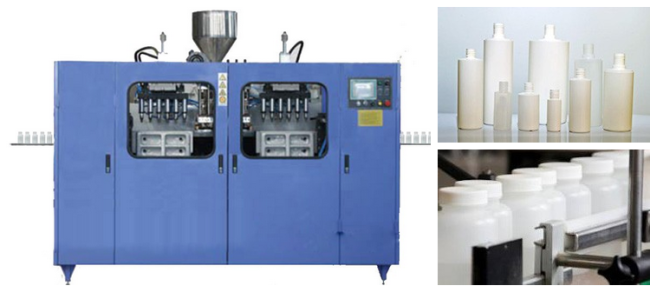

Plastic milk shampoo bottle making machine
Product Description
It is suitable for producing plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar,drum ,Tool kit , plastic model etc.
Technical Parameters
| Plastic milk shampoo bottle making machine | ||
| Technical specification | ||
| Model | HTII-3L/6 | |
| Station | Double | |
| Max. Product Volume | (L) | 0.35L |
| Dry cycle | (pc/h) | 800*2 |
| Screw Diameter | (mm) | 70 |
| Screw L/D ratio | (L/D) | 25 |
| Screw drive power | (KW) | 22 |
| Max. Output of HDPE | (Kg/hr) | 70 |
| Oil pump drive power | (KW) | 11 |
| Clamping force | (KN) | 76 |
| Platen distance | (mm) | 160~320 |
| Max. Size of Mold(W*H) | (mm) | 450*250 |
| Die heat power | (KW) | 4.3 |
| Blowing pressure | (Mpa) | 0.6 |
| Air volume | (M3/MIN) | 0.4 |
| Cooling water pressure | (Mpa) | 0.2~0.3 |
| Water consumption | (L/MIN) | 80 |
| Size of machine ( L*W*H) | (m) | 3.2*2.7*2.5 |
| Weight of machine | (TON) | 6 |
Details images
| Plastic milk shampoo bottle making machine | ||
| Extruson blow molding machine suppliers of main parts: | ||
|
a) Hydraulic Parts |
Name | Supplier |
|
a) Hydraulic Parts |
Oil Pump | PARKER or SUNNY, America |
| Valve | YUKEN or SUNNY | |
| Hose, Joint | PARKER SIR | |
| Sealer | Top DZ Europe | |
|
b) Electrical Parts |
Microcomputer Control System | MITSUBISHI PLC, Japan |
| Touch Screen | HITECH color screen, Taiwan | |
| Temperature Controller | MITSUBISHI, Japan | |
| Conductor | SCHNEIDER | |
| Air Switch | SCHNEIDER | |
| Motor | SIMENS BEIDE Asynchronous Motor | |
| Power Resource | MEAN WELL, Taiwan | |
| Inverter | MITSUBISHI | |
| c) Pneumatic Parts | Solenoid Valve | FESTO, Germany |
| Cylinder | FESTO, Germany | |
Main Features
1) Simple structure in linear type ,easy in installation .
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
Packaging
Our Services
1> The machine will be tested and checked at our workshop before delivery.
2>After one year, we will supply accessories are provided only one the cost price.
3>Free production technology and process configuration.
4>Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer’s journey.
5>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
6>We will reply you within 24 hours
Certifications
About us
Suzhou Tongda Mould Co., LTD is located in zhangjiagang city TangQiao economic development zone and the traffic is developed.
The company fusion technology, Western Europe professional design and production, sales three categories and 23 kinds of series and one hundred and eighteen kinds of specifications and types of automatic bottle blowing machines, blow molding blow molding machines and the company is in jiangsu province beverage, plastic machinery enterprise one of the export base.
The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.
