Double Station Extrusion Blow Molding Machine For 8-12L Laundry Detergent Bottles
Double Station Extrusion Blow Molding Machine For 8-12L Laundry Detergent Bottles
Technical Specification :
| Max .product Volume | (L) | |
| Station | Double | |
| Dry cycle | (pc/h) | 700*2 |
| Screw diameter | (mm) | 90 |
| Screw L/D diameter | (L/D) | 25 |
| Screw drive power | (kW) | 37 |
| Scew heating power | (kw) | 9.1 |
| NO .of heating zone(Screw) | (zone) | 3 |
| Output of HDPE | (Kg/h) | 130 |
| Hydraulic pump driving power | (KW) | 11 |
| Clamping force | (KN) | 110 |
| Platen distance | (mm) | 240-620 |
| Mold moving stroke | (mm) | 550 |
| Max .Size of Mold | (W*H)(mm) | 530*510 |
| Capacity of Accumulator head | (L) | |
| Max .Die diameter(single-head) | (mm) | 220 |
| Die heating power(single-head) | (KW) | 2.6 |
| No .of heating zone(single-head) | (Zone) | 3 |
| central distance of Bi-head | (mm) | 240,260 |
| Max .Die diameter(Bi-head) | (mm) | 145 |
| No .of heating zone (Bi-head) | (Zone) | 5 |
| Heating power (Bi-head) | (kw) | 2.8 |
| Blowing pressure | (MPa) | 0.6 |
| Air consumption | (M^3/MIN) | 0.8 |
| Cooling water consumption | Mpa | 0.3 |
| Water consumption | (L/MIN) | 60 |
| Size of machine | (L*W*H)(m) | 4.1*2.9*3.1 |
| Weight of machine | (TON) | 10 |
Delivery Details:Within 90 working days after confirming the order
Engineers available to service machiney overseas
Our company is dedicated to the research & development of extrusion blow molding machine .Our products are exported to more than ten countries and regions such as USA, U.K,Australia,Greece,poland,Russiaetc,62countries.
For the past fifteen years,our company is aimed to product good machine ,and best service.
a) Hydraulic Parts
| Name | Supplier |
| Oil Pump | PARKER or SUNNY, America |
| Valve | YUKEN or SUNNY |
| Hose, Joint | PARKER SIR |
| Sealer | Top DZ Europe |
b) Electrical Parts
| Name | Supplier |
| Microcomputer Control System | MITSUBISHI PLC, Japan |
| Touch Screen | HITECH color screen, Taiwan |
| Temperature Controller | MITSUBISHI, Japan |
| Conductor | SCHNEIDER |
| Air Switch | SCHNEIDER |
| Motor | SIMENS BEIDE Asynchronous Motor |
| Power Resource | MEAN WELL, Taiwan |
| Inverter | MITSUBISHI |
c) Pneumatic Parts
| Name | Supplier |
| Solenoid Valve | FESTO, Germany |
| Cylinder | FESTO, Germany |

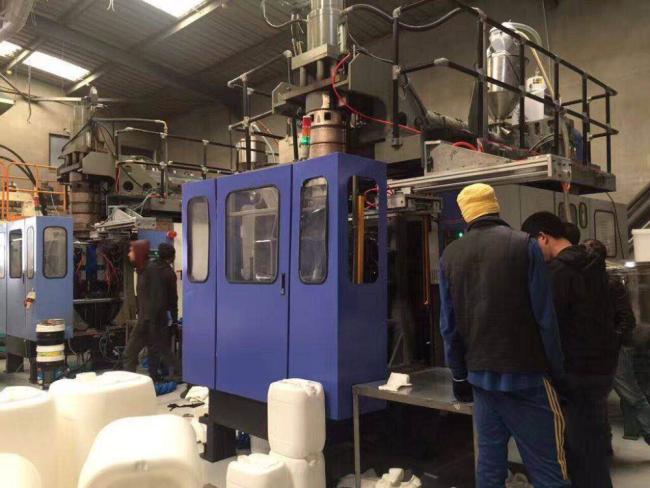

plastic jerry can production blow molding machine,automatic blow molding machine,extrusion blow moulding machine shipping and workshop:
