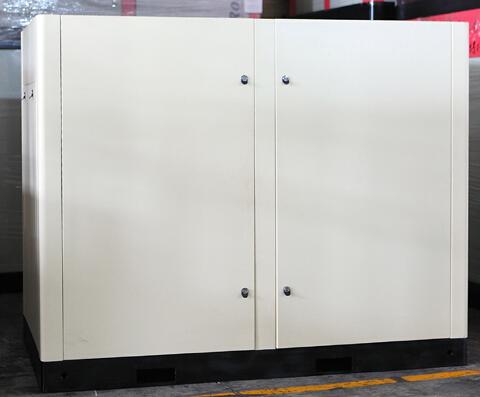

Double Screw Type Air Compressor For Industry Usage , One Year Lubrication Style
Yuda brand screw type air compressor
| Model | pressure | capacity | Air dryer | Type of Driving | Type of Cooling | Dimension(mm) | Weight (kg) |
||||
| bar | m3/min | kw/hp | m3 | Nm3/min | L | W | H | ||||
| ERC-10SA | 7 | 1.1 | 7.5/10 | 0.3 | 1.2 | Belt Driven | Air Cooling / Water Cooling |
850 | 640 | 880 | 350 |
| 8 | 1 | ||||||||||
| 10 | 0.85 | ||||||||||
| 12.5 | 0.7 | ||||||||||
| ERC-15SA | 7 | 1.8 | 11/15 | 0.5 | 2.4 | 1150 | 750 | 1180 | 450 | ||
| 8 | 1.65 | ||||||||||
| 10 | 1.5 | ||||||||||
| 12.5 | 1.3 | ||||||||||
| ERC-20SA | 7 | 2.4 | 15/20 | 0.5 | 2.6 | 1150 | 750 | 1180 | 460 | ||
| 8 | 2.2 | ||||||||||
| 10 | 2.1 | ||||||||||
| 12.5 | 1.8 | ||||||||||
| ERC-25SA | 7 | 3.1 | 18.5/25 | 0.5 | 3.8 | 1200 | 880 | 1450 | 620 | ||
| 8 | 2.9 | ||||||||||
| 10 | 2.7 | ||||||||||
| 12.5 | 2.3 | ||||||||||
| ERC-30SA | 7 | 3.8 | 22/30 | 0.5 | 3.8 | 1200 | 880 | 1450 | 640 | ||
| 8 | 3.6 | ||||||||||
| 10 | 3.2 | ||||||||||
| 12.5 | 2.5 | ||||||||||
Advantages of the whole air compressor unit:
1. Approved by ISO9001certificate, SGS, CE and etc..
2. Adopt world famous brand of twin-screw air end, high efficiency, reliable and long use life.
3. Adopt world famous brand of air intake filter, oil filter, air and oil separator, realize high filtration accuracy, compressed air oil content under 3ppm, reach to international advanced standard level.
4. Equip with the most advanced air control system. Adopt air intake valve, intelligent control system and pressure sensor combined control method, can operate by ON and OFF two point, stepless air capacity control system, time-delay stop and automatically start device three air capacity control method, can meet different clients demand.
5. Intelligent microcomputer control system, Chinese and English language operation interface, malfunction display, alarm and machine stop automatically.
6. Adopt high quality and world famous brand of main components, like UK APD oil filter, America AMOT temperature controlling valve, SCHNEIDER electric parts and etc., high efficiency, reliable and long use life.
After sales service:
1. Providing professional air compression program designing for free.
2. Providing our factory original machine parts at lowest price after machine sales.
3. Providing training and guidance for free, customers can send their staff to our factory to learn how to operate the machines.
4. Warranty period: the screw main machine is one year, the bearing is one year.
