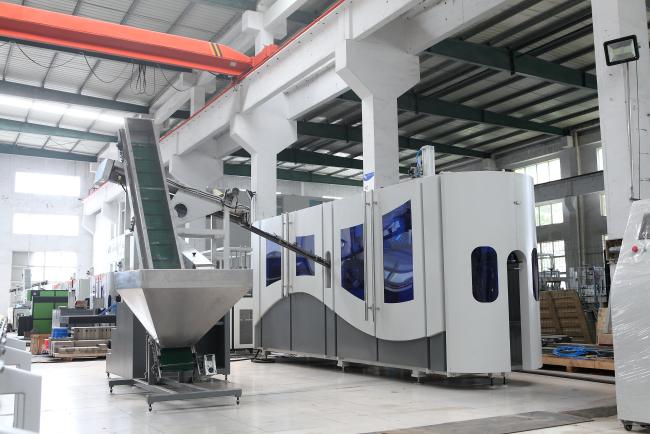

8000BPH 500ml 2L Water Bottle Blow Molding Machine
1.The unique cam linking system integrates mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerates the speed.
2.Equipped with remote monitoring system, engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile, feedback will be informed to the client' s site if something abnormal,give the machine 24 hours' baby care in the cradle
3.Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven, it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature in the heating zone.
4.The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.To change mold ony need 30 minutes.
Optional items:
1) Exploded bottles ejection unit
During the blowing process, if the bottle burst, bad bottles can be automatically removed. This prevents the bad bottles from entering the filling machine.
2) HP air recovery system
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.
3) Oven and preform temperature detection system
Detection system detects temperature of oven and the temperature of performs. When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
| Type | FG4 | FG6 | FG8 | ||
| Bottle specification | Mold number(piece) | 4 | 6 | 8 | |
| Max capacity(BPH) | 6500-8000 | 9000-10000 | 12000-13000 | ||
| Max volume(mL) | 2000 | 2000 | 750 | ||
| Max height(mm) | 328 | 328 | 290 | ||
| round bottle max diameter(mm) | 105 | 195 | 75 | ||
| Square bottle max diagonal(mm) | 115 | 115 | 76 | ||
| Preform specification | Suitable inner bottle neck (mm) | 20-25 | 20-25 | 20-25 | |
| Max perform length(mm) | 150 | 150 | 150 | ||
| Electricity | Total installation power(KW) | 51 | 51 | 97 | |
| Heating oven total power(KW) | 46 | 46 | 92 | ||
| Heating oven real power(KW) | 25 | 30 | 45 | ||
| Voltage/Frequency(V/Hz) | 380(50Hz) | 380(50Hz) | 380(50Hz) | ||
| Allowed voltage fluctuation range | ±10% | ±10% | ±10% | ||
| Compressed air | Pressure (bar) | 30 | 30 | 30 | |
| Air consumption(m3/min) | 4 | 6 | 8 | ||
| Cooling water | Mold water | Pressure (bar) | 4-6 | 4-6 | 4-6 |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 45 | 45 | 45 | ||
| Oven water | Pressure (bar) | 4-6 | 4-6 | 4-6 | |
| Temperature regulation range | 6-13 | 6-13 | 6-13 | ||
| Flow rate(L/min) | 22 | 22 | 22 | ||
| Machine specification | Machine dimension(m)(L*W*H) | 3.3*1*2.3 | 4.3*1*2.3 | 4.8*1*2.3 | |
| Machine weight(Kg) | 3500 | 4000 | 4500 | ||
Advantages
This FG4 pet bottle machine has reasonable structure design, featured by its high speed, small space occupation, low power and HP consumption, less noise and excellent stability, and conforms to national beverage sanitary standards. It symbolizes the highest level of national linear blowing machine, It is the ideal bottle making equipment for beverage enterprises.
One Stop Station Services
1) Stand-by engineers team to provide overseas installation and commissioning service.
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3) Lifetime maintenance. After-sales department can provide life long maintenance service.
One stop Station Services
1)Stand-by engineers teams to provide overseas installation and commissioning service.
2)1 year warranty.During warranty ,we provide free of charge for repairing cost.
3)lifetime maintence .After-sales department can provide life long maintence service.
