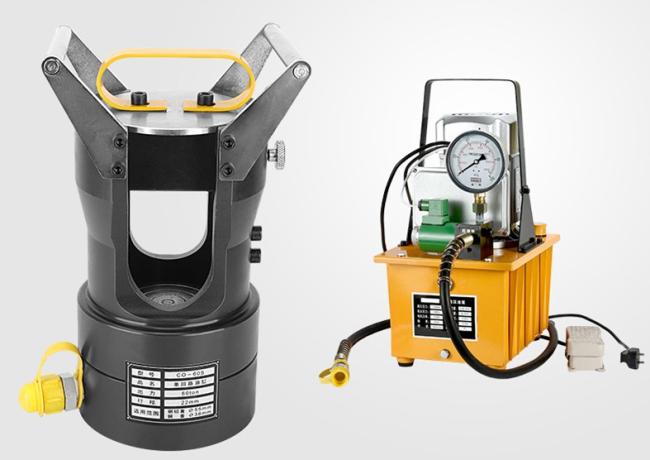

CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools

Application:

Connecting with ultra high pressure pump, it is used for pressing of overhead steel-cored aluminium strand and intermediate connecting pipe of steel strand and tension clamp of transmission line above 110KV.

Features:

• 1. Using high strength alloy steel forging processing and exquisite heat treatment to ensure the strength and service life of the equipment.
• 2. It is suitable for crimping of over 110kV overhead strain sleeve and continuous operation of underground cable.
• 3. The maximum tube sleeve size is 76mm, the crimping surface is wide, and the number of crimping is small, which can reduce the crimping deformation and control the elongation.
• 4. The double acting hydraulic cylinder can avoid the problem of spring fatigue and slow reset, and can shorten the reset time of piston and improve the working efficiency.
• 5. The movable mould can assist the operator to take out the mould easily after crimping.
• 6. The rotary die cover can be opened and closed quickly, which makes the operation and positioning easier.
• 7. Simple design, easy maintenance.
• 8. Equipped with quick connector, convenient for loading and unloading.
• 9. It must be equipped with ultra-high pressure hydraulic pump. The pump is not included in the factory. It can be selected according to customers.
• 10. The factory does not include mold, specific mold specifications and models, need to be matched according to customer needs.

Data Sheet

Mold comparison table
