7.5KN ADSS OPGW Line Tension Stringing Equipment Max Optical Fiber Cable diameter 21mm
7.5KN ADSS OPGW Line Tension Stringing Equipment Max Optical Fiber Cable diameter 21mm
Quick details
1. HydraulicTension Stringing Equipment
2. No engine
3. Bull-wheel diameter: 1100mm
4. Hydraulic Tensioner
5. Max tension: 1x7.5kN
6. Speed reducer: German Rexroth
7. Hydraulic meter: German
8. Max conductor diameter: 24mm
9. Max Optical fiber cable diameter: 21mm
10. Groove number: 4
Description
Applied for tension stringing of the transmission line conductors and ground cables, and ADSS, OPGW optical cables.
Performance
Max continuous tension: 1x7.5kN
Max speed: 40m/min
Characteristics
Bull-wheel diameter: 1100mm
Max conductor diameter: 24mm
Max Optical fiber cable diameter: 21mm
Groove width: 45mm
Groove number: 4
Total weight: 850kg
Overall dimension (length*width*height): 2400×1630×1830mm
Configuration
Hydraulic dynamometers
Hydraulic oil cooling system
Mechanical meter counters
Grounding connection point
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Technical Data
| Model Type | YL-75 |
| Overall Size(mm) | 2300*1250*1620 |
| Weight(kg) | 450 |
| Max Tension(KN) | 7.5 |
| Rated Tension(KN) | 5 |
| Max Velocity(m/min) | 40 |
| Diameter of Tension wheel(mm) | Φ1100 |
| Applicable Conductor Wire | ≤ LJ-240 |
| ≤ LJ-185/10 | |
| Suitable Hydraulic Oil Type | No.46 Antiwear Hydraulic Oil |
| Max Oil Temperature(°C) | 70 |
| Rated Working Pressure(MPa) | 25 |

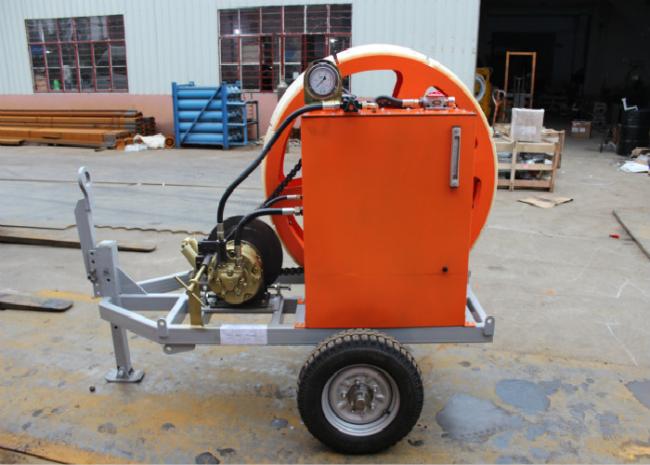

Detail Figure

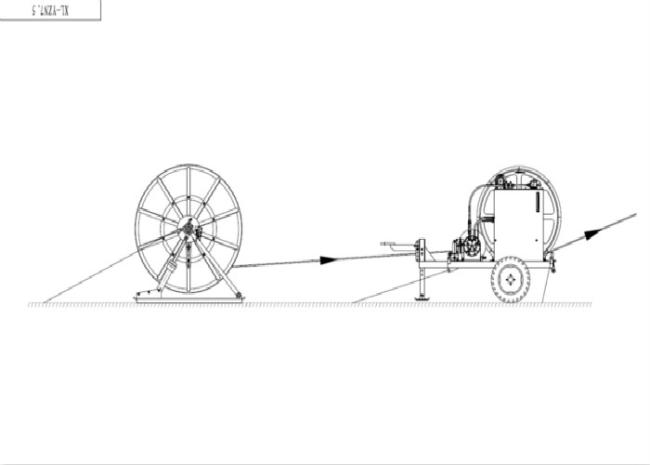

Practical Application
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
