J40 Ratchet Types Cable Cutter for for Armored cable and Copper and Aluminum Cable 300mm2
J40 Ratchet Types Cable Cutter for for Armored cable and Copper and Aluminum Cable 300mm2
BRIEF INTRODUCTION
1. Cutting range: for armored cable and copper and aluminum cable, φ30mm(300mm²)
2. Not for cutting stressed steel wire and steel wire knives can be sharpened or replaced.
Feature:
1. Cutting cu/al armored cable below diameter 300mm2
2. Blades can be resharpened or exchanged.
3. Ratchet structure saves labor
4. 30% labor save cause of handles special design
5. Packed with carrying bag.
6. Size: 346x123x38 mm
7. Weight: 1.15kg
Different Types of Cable Cutter
| 1 | J13 | Cutting Range | ACSR≤720mm2,Prestressed steel wire≤150mm2 |
| Weight | 1.95kg | ||
| 2 | J30 | Cutting Range | ACSR≤630mm2,Prestressed steel wire≤100mm2 |
| Weight | 3.6kg | ||
| 3 | J25 | Cutting Range | ACSR≤800mm2,Prestressed steel wire≤150mm2 |
| Weight | 3.45kg | ||
| 4 | J50 | Cutting Range | ACSR≤1440mm2 |
| Weight | 3.2kg | ||
| 5 | J14 | Cutting Range | steel wire rope≤20mm |
| Weight | 2kg | ||
| 6 | J25A | Cutting Range | steel wire rope≤30mm |
| Weight | 3.55kg | ||
| 7 | J33 | Cutting Range | steel wire rope≤33mm |
| Weight | 5.15kg | ||
| 8 | J40A | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1kg | ||
| 9 | J40B | Cutting Range | Copper&Aluminum Cable ≤240mm2 |
| Weight | 0.65kg | ||
| 10 | J40C | Cutting Range |
For Big blade,Copper&Aluminum Cable ≤300mm2; For small blade,steel cable |
| Weight | 1.1kg | ||
| 11 | J40D | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1.05kg | ||

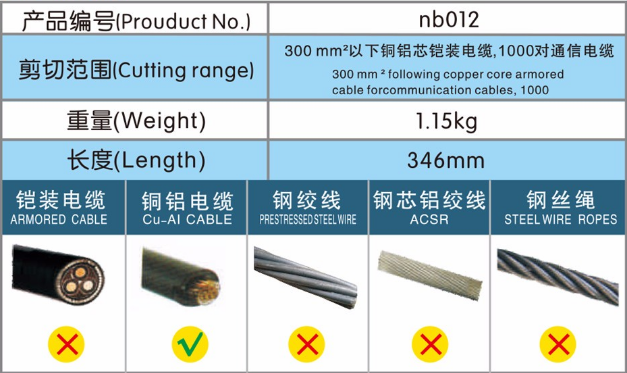

| 12 | J40 | Cutting Range |
Copper&Aluminum Cable ≤300mm2; 1000 pairs coommunication cable |
| Weight | 1.15kg | ||
| 13 | J52 | Cutting Range | Copper&Aluminum armoured cable≤500mm2 |
| Weight | 3.1kg | ||
| 14 | J75 | Cutting Range |
Copper&Aluminum armoured cable≤3×120mm2; Copper&Aluminum armoured cable≤75mm; 3600 pairs coommunication cable |
| Weight | 3.6kg | ||
| 15 | J95 | Cutting Range |
Copper&Aluminum armoured cable≤3×185mm2; Copper&Aluminum armoured cable≤95mm |
| Weight | 5kg | ||
| 16 | J100 | Cutting Range |
Copper&Aluminum armoured cable≤3×300mm2; Copper&Aluminum armoured cable≤100mm |
| Weight | 6.6kg | ||
| 17 | J130 | Cutting Range | Copper&Aluminum armoured cable≤130mm |
| Weight | 8.3kg | ||
| 18 | J160 | Cutting Range | Copper&Aluminum armoured cable≤160mm |
| Weight | 11.1kg |
