Manual Hydraulic Cable Lug Crimping Tool EP-430 12T Force Crimping Up To 400mm2
Manual Hydraulic Cable Lug Crimping Tool EP-430 12T Force Crimping Up To 400mm2
Characteristics
1. Compression mould can be replaced, quick and safe operation;
2. Compression configuration: 50,70,95,120,150,185,240,300,400mm2
Press tools is suitable for DIN.AWG.JIS.
There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
Only one person can work.
Pump is connected to the tools, it can turn 180 degree when pressed on the head.
Features
1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .
2. Open cut design for convenient operation.
3. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.
4. The head could be rotated 180° freely for narrow space working.
5. Fitted with safety valve, when pressure reaches to limited max. Value pressure release automatically to prevent over pressure.
6. Standard die assembling 50,70,95,120,150,185,240,300,400mm².
7. Fiberglass insulated handles to prevent accidental electrichitting.
8. Packing case is made form robust integarl plastic box.
Technical Data
| | | | | | | |
| EP-400 | 12 | 16-300 | 30 | 145 | 6.6 | 50,70,95,120,150,185,240,300 | 755×130×230 |
| EP-430 | 12 | 16-400 | 32 | 145 | 6.4 | 50,70,95,120,150,185,240,300,400 | 755×130×230 |
| EP-510 | 12 | 16-400 | 38 | 200 | 7.2 | 50,70,95,120,150,185,240,300,400 | 755×130×230 |

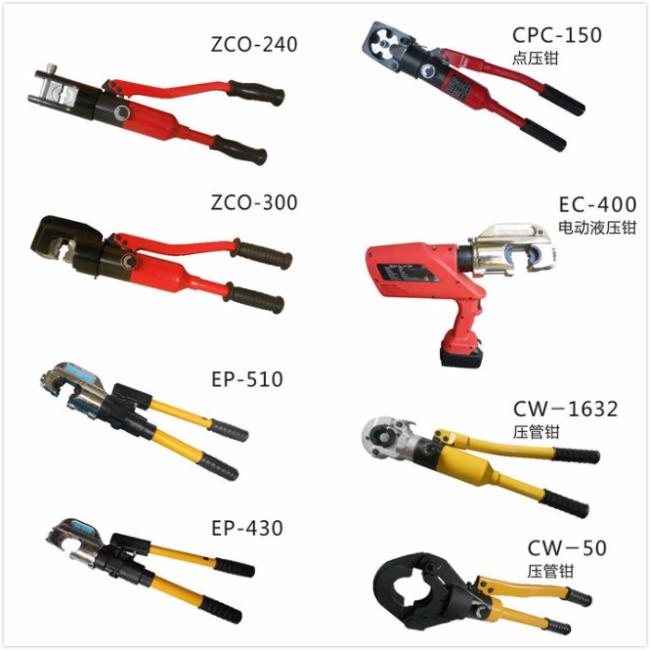

Different Types
