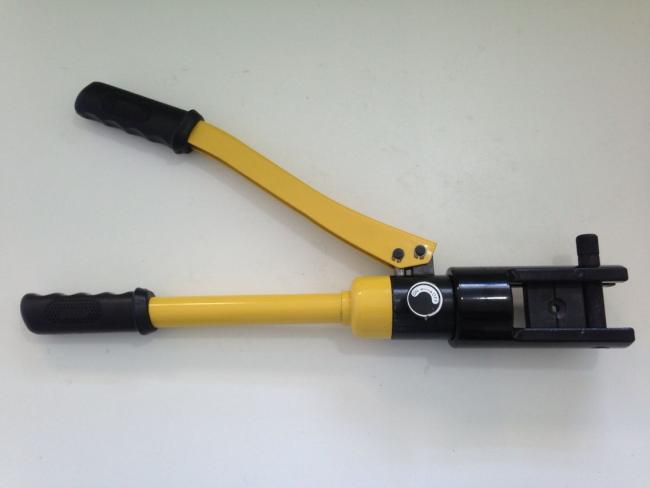

YQK-300 Hand Operated Hydraulic Cable Lug Crimping Tool With 16 Ton Force

Price Negotiable

Price: negotiation

MOQ: 2pcs

Delivery Time: 7days after payment

Brand: SHENHONG

Product Description

YQK-300 Hand Operated Hydraulic Cable Lug Crimping Tool With 16 Ton Force

Features:

1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .

2. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.

3. Standard die assembling 16,25,35,50,70,95,120,150,185,240,300mm2

4.Packing case is made form robust integarl plastic box.

Data Sheet

Crimping range	16-300mm2
Crimping force	12T
Crimping type	hexagon crimping
Stroke	22mm
Weight	5.5kg
Package	plastic box
Accessories	16,25,35,50,70,95,120,150,185,240,300mm2

Different Types

Item No	Crimping range	Crimping force	Crimping type	Stroke	Weight	Package	Crimping dies
YQK-70	4-70mm2	8 ton	Hexagon	10mm	2.8kg	Plastic case	4,6,8,10,16,25,35,50,70mm2
YQK-120	10-120mm2	12 tom	Hexagon	14mm	4.00kg	Plastic case	10,16,25,35,50,70,95,120mm2
YQK-240	16-240mm2	16 ton	Hexagon	22mm	5.20kg	Plastic case	16,25,35,50,70,95,120,150,185,240mm2
YQK-300	16-300mm2	16 ton	Hexagon	22mm	6.30kg	Plastic case	16,25,35,50,70,95,120,150,185,240,300mm2
