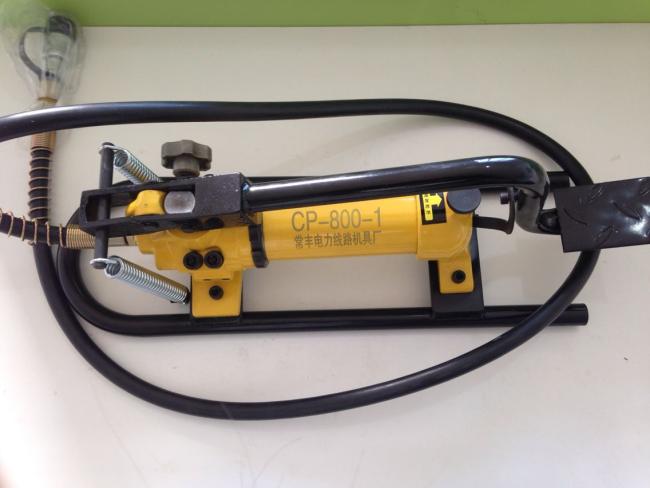

CFP-800 70Mpa Hydraulic Power Foot Operated Pump For Power Supply

Tools Introduction

Foot Hydraulic Pump CFP-800 is a Foot-operated Single-Acting pump. It is used to provide pressurized oil to compatible remote control single-acting tools: Crimping Head / Cutting Head / Cylinder / Pipe bender / Busbar tools etc. Where 700Bar (10000PSI) working pressure is needed. With PT 3/8" quick coupler, pumps can be quickly connected with compatible tools. Double speed unit and safety valve assembled inside make operation fast and safe.

Specification

1. Application: Supply pressurized oil to compatible tools

2. Single-Acting Foot Operated

3. Rated Pressure: 700Bar (10000psi)

4. Working Pressure: Low Pressure 0-20Bar High Pressure: 20-700Bar

5. Oil Delivery Speed: Low Pressure 9.8cc/stroke High Pressure 1.9cc/stroke

6. Weight: 10.1kg Size: 610*140*170mm

7. Package: Steel Case

Features

1. Foot operated style: For easy operation. It's not necessary to bend or crouch down during operation, easpacially good for tall people

2. Quick Coupler: For fast connection with compatible tools.

3. Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (9.8cc/stroke), and then bulid sufficient working pressure under losd condition (20-700Bar)

4. Safty Valve: For safe operation. Automatically relief pressure when rated pressure is reached, protect hydraulic system from overpressure

5. Steel Case Package: For easy carrying and protect pumps well during shipping
