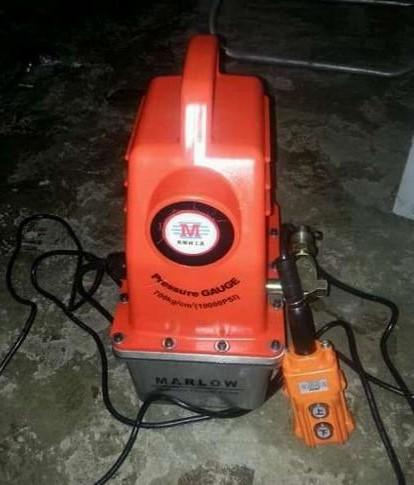

Electric Hydraulic Pump CTE-25AS is a single-acting,double speed pump.It is used to provide pressurized oil to compatible tools: Cylinder, Crimping Head, Cutting Head, Busbar punching bending cutting tools, pipe bender etc. where 700 Bar (1000PSI) working pressure is required. Ram advancement and retraction are controlled by solenoid valve equipped inside.

Specification.

Rated Working Pressure: 700Bar (10000PSI);Single-Acting Double Speed;Oil Reservoir: 4000CC;Oil Delivery Speed: Low pressure 2.6cc/stroke High pressure: 0.32cc/stroke;Working Pressure: Low pressure 0-20bar High Pressure: 20-700bar;Weight: 29kg;Size:350*270*490mm

Features

1. Easy to operate and high safety

2. Electromagnetic valve control or manual valve to pull back piston at any position

3. High and low speed for quick oil output.Turbine oil absorption to ensure max. effective oil volume

4. Overpressure unit of pressure safety valve to avoid over pressure damage or extremely pressured. At 700kg/cm2,pressure release automatically

5. High pressure is for driving piston, low pressure is for piston reset

6. Oil pipe coupling is fitted with PT3/8” thread

7. The pump can be used for a variety of hydraulic equipments.

8. If the pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly. Reduce manual work and maximize work efficiency.
