Small Volume GYB-700 220V Hydraulic Pump Electric Motor Single Acting 1400R / Min
Small Volume GYB-700 220V Hydraulic Pump Electric Motor Single Acting 1400R / Min

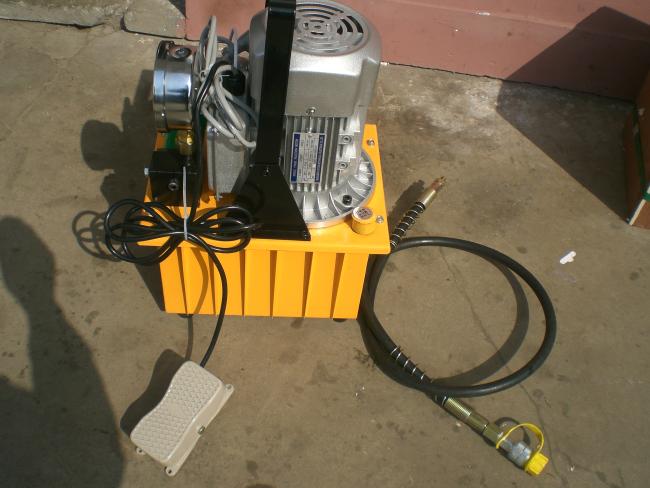

Hydraulic Electrical Oil Pump GYB-700B
1. small volume,light weight
2. designed as adjustable outside pressure,accurate torque,repeatedly high precision.
3. the quality is assured.
Application
1). Double speed high performance pumps, built in 10000Psi pressure overflow valve, can ensure the maximum
2). Flow when maximum pressure.
3). Standard of can see an oil window, observe the location of oil, with the normal operation that assures machine;
4). Equipped with low noise pure aluminum alloy enclosure motor and light weight, convenient to move.
5). Can choose to equip long range wire to control a switch, easy to long-distance to leave an operate
6). Use the following Suggestions 200 T of hydraulic cylinder
Features
On both ends of the low end of the high output, large amount of oil;
Low pressure use plunger type, improve the effective pressure;
Single active, foot switch control,can be used to operate cutting, punching tools, hydraulic cylinder, etc.;
Pressure overload protection device, avoid overpressure and damage the equipment;
Automatic the pressure, make sure won't leak when using.
Data Sheet
| Item No. | GYB-700 | ||
| Working pressure | high pressure:70Mpa | low pressure:7Mpa | |
| Rated output | high pressure:0.9L/min | low pressure:5L/min | |
| Power Rating | 0.75Kw | Speed | 1400r/min |
| Working Power | 50-60Hz / 110-380V(Customizable.) | ||
| Oil Capacity | 7L(Customizable.) | Type of oil | 15#-46# antiwear hydraulic oil |
