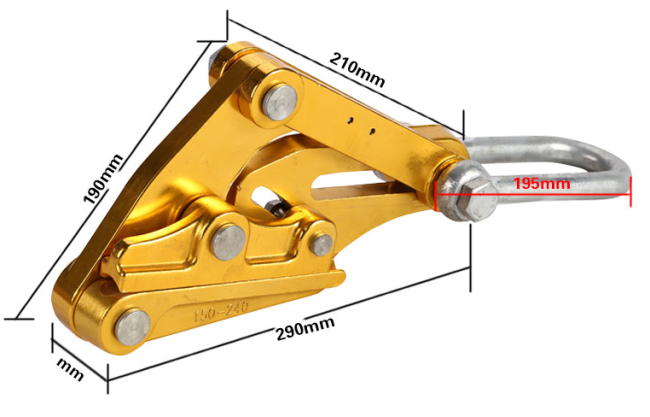

Aluminum Radial Locking Wire Grip Clamp for ACSR Conductor SKL-25
Aluminum Radial Locking Wire Grip Clamp for ACSR Conductor SKL-25
Quick Information
Model:SKL-25
Rated Load:25KN
Applicable Conductor:150-240mm2
Weight:3kg
A device for gripping,pulling and tensioning of sheathed wire ropes, and metal rods,essy operation with safety.Excellent quality.
A device made in alloy for gripping,pulling and tensioning of sheathed wire ropes, cables ,earht or ground cable, cable stretcher and metal rods according to the wire diameter.
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor
(ACSR-MM2)
|
Max Open
(MM)
|
Unit Weight
(KG)
|
|
0101
|
SKL-7
|
7
|
25~70
|
14
|
1.0
|
|
0102
|
SKL-15
|
15
|
95~120
|
18
|
1.4
|
|
0103
|
SKL-25
|
25
|
150~240
|
24
|
3.0
|
|
0104
|
SKL-40
|
40
|
300~400
|
32
|
4.0
|
|
0105
|
SKL-50
|
50
|
500~630
|
36
|
6.6
|

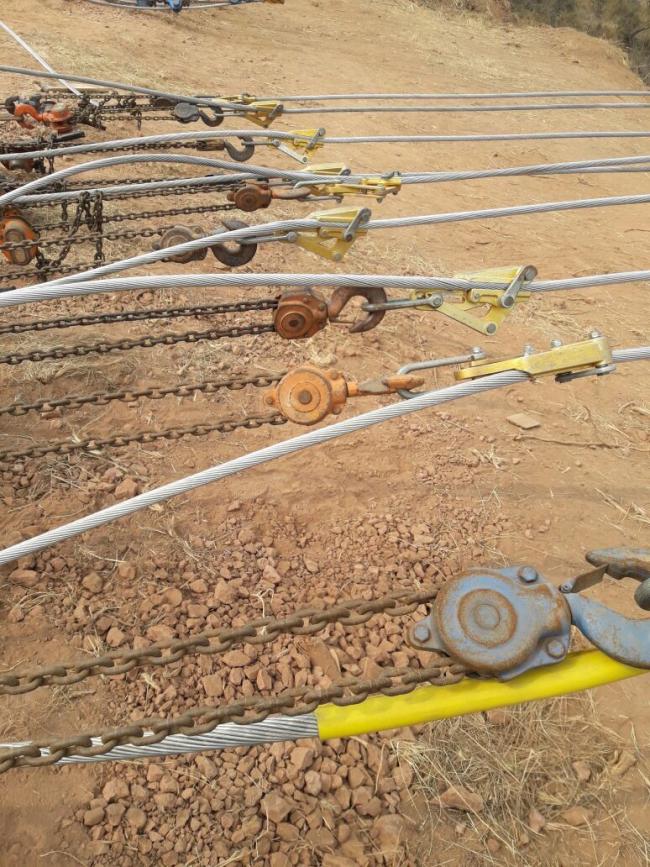

Uses: Apply to sag adjusting and tensioning on overhead line construction.
Features: The clamp is forged of high strength aluminum alloy with small and light unit weight.
