CH-60 Overhead Line Construction Tools Sheet Metal Hole Punch Machine Punching 6mm Metal Sheet​

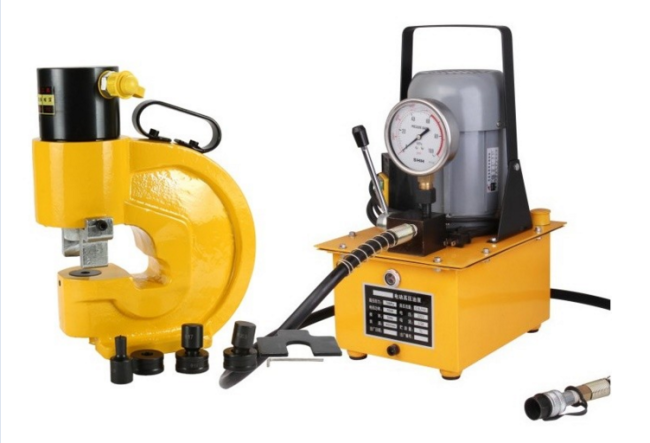

CH -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Introduction

hydraulic punching tools CH-60 is a single acting hydraulic bus bar punching tool. It is applicable for punching on Cu and Al bus bar, punching range is between 10.5mm and 20.5mm diameter, bus bar thickness should below 8mm.

In order to make punching precisely, 4 pairs punching dies are attached as standard accessories, their size are Ø10.5mm Ø13.8mm Ø17mm Ø20.5mm separately. For special application, dies customization is also available.

As a remote control hydraulic tool, external single acting hydraulic pump is required. All the Hand pump, Foot pump and electric hydraulic pump in our production range are compatible with CH-60, they can deliver pressurized oil to CH-60 through oil pipe and provide 10000psi working pressure.

With the help of hydraulic power, sharp and high-quality punching dies, position unit, punching can be made easily, fast and precisely.

For similar products, CH-70 is strongly recommended, it’s working force and punching capacity are better than CH-60.

Features:

1 Hydraulic hole puncher is designed for punching holes on Cu/AI bus bar

2 Punching the different kind metal sheet up to 10mm.

3 This type of hydraulic hole puncher can match up hand pump CP-700/ CFP-800-1 or electric pump.

4 Remote Control Style for easy carrying. External hydraulic pump is required. With the quick coupler equipped, CH-60 and pumps can be connected easily by hand.

5 With the help of hydraulic power and sharp high-quality dies, punching can be made easily and fast. Without scrap.

6 4 pairs punching dies are attached for precise punching. punching dies can be purchased separately as spare parts. For special application, punching dies can be customized if sample and drawings can be sent to us

Specification

(1) Application: Punch on Cu and Al Bus bar

(2) Output: 31T

(3) Punching Capacity

Hole Size: Ø10.5 Ø13.8 Ø17 Ø20.5mm Bus bar Thickness Max. 8mm

(4) Throat Depth: 95mm

(5) Size:350*245*110mm Weight:13.5kg
