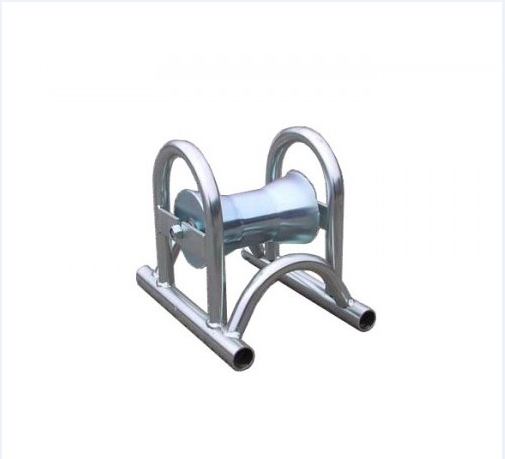

10KN Rated Load Aluminum Cable Pulling Pulley Galvanized Coating Frame For Max φ150mm Cable
Price:
negotiation
MOQ:
10pcs
Delivery Time:
7 days after payment
Brand:
SHENHONG
Product Description
10KN Rated Load Aluminum Cable Pulling Pulley Galvanized Coating Frame For Max φ150mm Cable
Quick Infomation
Base Size: 350mm x 230mm. Weight: 4Kgs Load Capacity: 100Kg
Cable Pulling in Trench - Horizontal Cable Runs
Cable pulling contractor should ensure cable to be pulled in (LV or HV) should be supported on free running cable rollers with no projections or sharp edges to prevent snagging and subsequent cable sheath damage.
Straight cable rollers shall be placed in the cable trench to prevent the LV-HV cable from dragging on the cable trench bottom or in mud.
Data Sheet:For cables up to diameter 150mm.
| Cat. No. | Rated Load (kN) | Construction | Weight (kg) |
| CR0110 | 10 | Cast aluminum frame, aluminum (nylon) roller | 5.4/3.6 |
| CR0111 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.5/3.1 |
| CR0112 | 10 | Steel tubing, long legs, aluminum (nylon) roller | 5.8/4.2 |
| CR0113 | 10 | Steel plate base, aluminum (nylon) roller | 5.5/3.7 |
| CR0114 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
| CR0115 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
