Heavy Duty Cable Drum Stand , 10 Tonne Hydraulic Cable Drum Jack Dia. 3200mm
Heavy Duty Cable Drum Stand , 10 Tonne Hydraulic Cable Drum Jack Dia. 3200mm

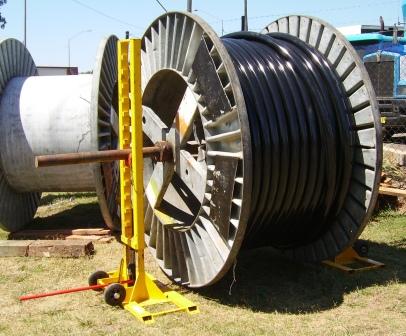

Our free-standing cable drum stands with hydraulic bottle jacks makes spooling heavy drums of power and data cable or conveyor belts possible even when minimal drum handling equipment is on site.
The system comprises of two independent cable drum stands complete with hydraulic jacks placed either side of the cable drum and a high tensile spindle secured in a lockable cradle. Recommended to be set up on level, even surface.
Features:
1. Safe and efficient one-man operation
2. Compact, lightweight and portable
3. Easy to assemble and operate
4. Simple to dismantle for transportation
Data Sheet
| Model | 03741 |
| SWL | 10Tonne |
| Max. Drum(mm) | W 2400, Dia. 3200 Max |
| Dimensions(mm) | H 1900 |
| Spindle | L 4000, Dia. 74 |
| Weight | 140 kg + spindle |
