3300N.m Brake Force Cable Jack Stands SIYZ10 10 Ton Drum Type Elevator With Hydraulic Motor
3300N.m Brake Force Cable Jack Stands SIYZ10 10 Ton Drum Type Elevator With Hydraulic Motor
Introduction
Hydraulic reel elevators are used for supporting and controlling the conductor reels(drums)during the transmission line stringing operation.The drum elevators are made of welded steel with a protective coating:the frame is completely detachable to reduce the dimensions during the transport.The hydraulic motor is imported from Ameria to control the conductor drum when unwinding the conductor.
Quick Infomation
1. Max torque force(N.m):3300
2. Max Rotation Speed(RPM):45
3. Axial diameter(mm):94mm
4. Weight(kg):600
5. Length of hydraulic hose(m):15
6. Parallel hole distance(mm):300-500

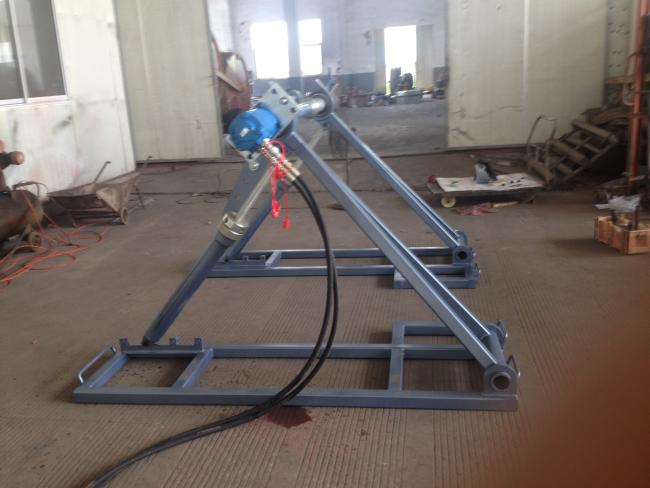

10 Ton Hydraulic reel stand with Motor
| Item No. | Model | Accommodated Reel | Brake force (N.M) | Rotation speed (rpm) | Weight (kg) | |||
| Diameter (mm) | Width (mm) | Bore (mm) | Max. Weight | |||||
| 15155 | SIYZ10 | ≤Φ2000-3000 | ≤1700 | Φ80-125 | 10 Ton | 3300 | 45 | 400 |
Application
It is used to raise and support reels in conductor or earth wire stringing operations. The reel could be controlled by hydraulic motor in both rotation directions. The hydraulic reel stand could be driven by hydraulic tensioner or hydraulic puller tensioner, through 13 meter long hydraulic pipe.
Features: It could be dismantled into 5 pieces, easy for transportation.
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
