Stainless Steel Cable Pulling Tools Wire Rope Connector Swivel Joints 5-400KN Load
Stainless Steel Cable Pulling Tools Wire Rope Connector Swivel Joints 5-400KN Load
Application
In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.
Features
1. attractive appearance
2. durable
3. light weight
4. high strength stainless steel.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Our Values
1. Take First-Class Quality as Target and First-class Service.
2. As Responsibility, To Succeed By Scientific Management.
3. Customer in Heart, Quality in Hand, Technology in the Lead.

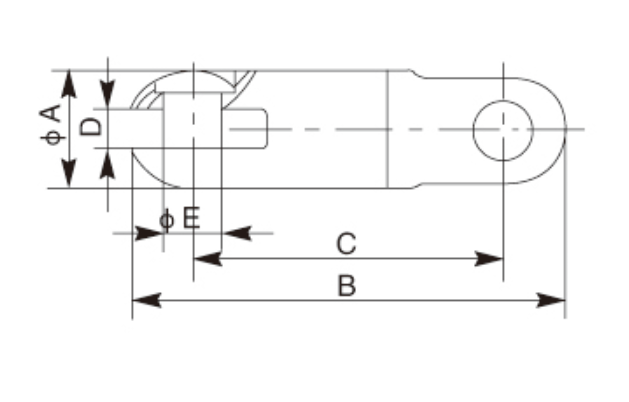

Technical data of Cable pulling tools wire rope connector swivel joints 5-400KN load
| Model | Main Size(mm) | Rated Load(KN) | Weight(KG) | ||||
| A | B | C | D | E | |||
| SLX-0.5 | 19 | 61 | 40 | 8 | 9 | 5 | 0.2 |
| SLX-1 | 30 | 100 | 70 | 12 | 13 | 10 | 0.4 |
| SLX-2 | 35 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| SLX-3 | 37 | 129 | 95 | 16 | 16 | 30 | 0.65 |
| SLX-5 | 42 | 154 | 116 | 18 | 17 | 50 | 1.5 |
| SLX-6.5 | 51 | 185 | 140 | 20 | 19 | 65 | 2.0 |
| SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| SL80Y | 57 | 207 | 152 | 24 | 20 | 80 | 2.4 |
| SL130 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| SL180 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| SL250 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| SL250Y | 80 | 323 | 243 | 30 | 30 | 250 | 8.0 |
| SL320 | 85 | 346 | 264 | 38 | 30 | 320 | 9.7 |
| SL400 | 100 | 383 | 293 | 43 | 33 | 400 | 17 |
