Dia 13mm 200m Length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod

Dia 13mm 200m length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod

Application

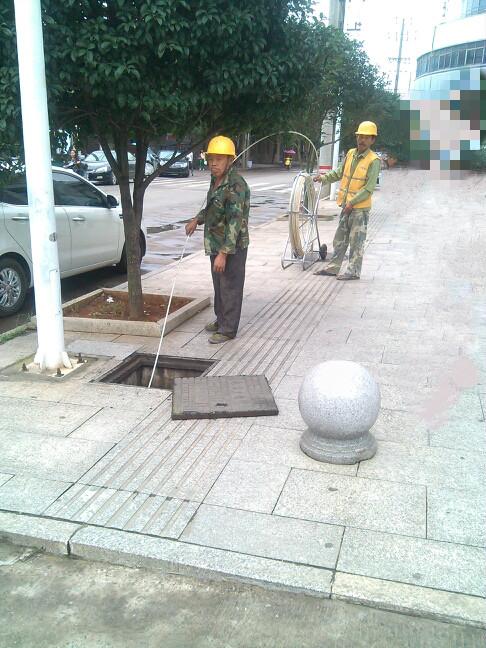

It is used to install pulling ropes and winch ropes into ducts, ready for cable pulling operations

Features

It is lightweight and flexible

Specification

1. Rod diameter: 13mm

2. Rod length: 200m

3. Wheel diameter: 300m

4. Wall thickness of metal frame: 2.2mm

5. Color: blue,yellow,red white,ect.

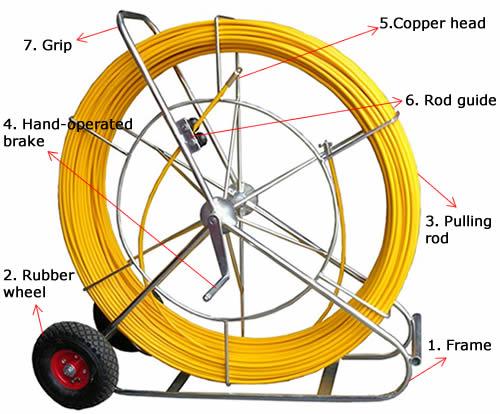

Material

1. Rod inner: Extruded by fiberglass and high strength resin at high temperature

2. Rod outer: High density polyethylene coating

3. Iron frame: Steel with high-tempurature sprayed plastic or spray coating

4. Wheel: rubber

5. Brake: yes

6. Drawing head: ropper

Physical characters

1. Density: 55g/m

2. Working temperature: -40C to +80C

3. Breaking tension: 100kg

4. Breaking radius: 295mm

5. Technology: Pultrusion

Packaging

1. Inside: Plastic woven strip wind around the frame

2. Outside: Wooden pallet and wooden box

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
