15 - 20Ton Electrical Hydraulic Cable Drum Jack Stand For Large Cable Tray
15-20Ton Electrical hydraulic cable drum jack stand for large cable tray
Application

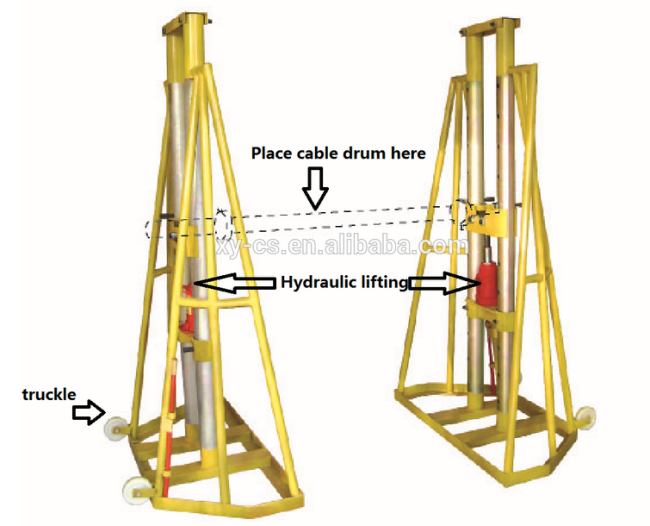

It is used to connect with hydraulic tensioner or hydraulic puller tensioner through quick coupling.It is applies as a large cable tray support when buried in the cable in the city. It is lifted by hydraulic, can carry heavy weight.The bottom of it has a small wheel, so it is easy to move and it can be equipped with brake device that uses foot brake.
Technical data of 15-20Ton Electrical hydraulic cable drum jack stand for large cable tray
| Model | SY-15 | SY-20 | |
| Rated load(KN) | 150 | 200 | |
| Applicable reel(mm) | ≤Φ3200 | ≤Φ3600 | |
| Weight of reel(t) | ≤15 | ≤20 | |
| Weight(kg) | 130 | 150 | |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
