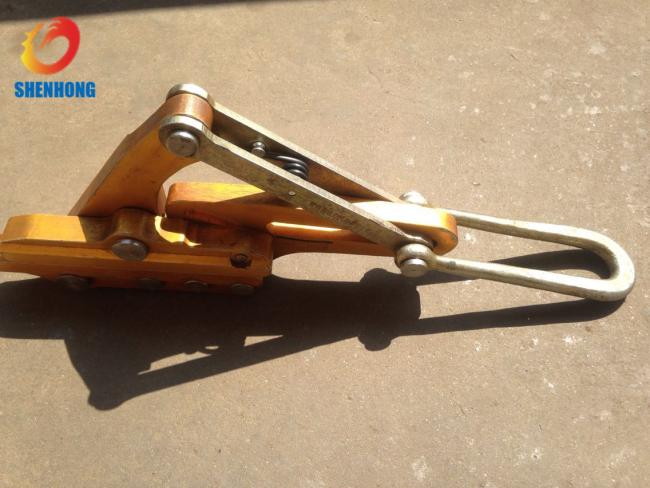

OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips
OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips
Characteristic
It is used for holding the OPGW overhead optical ground wire.
The diameter of optical cable is same as the size of clamp,in order to ensure clamping firmly, reduce the pressure of clamped parts and protect the inside fiber of cable from damaging.
The body is forged from high strength aluminum-titanium alloy , and use the bolt to fasten to prevent the line slipping and hurting.
You need to indicate the outer diameter of optical cable and the model number of optical cable when you place the order.
Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model No. | Cable Diameter(mm) | Rated Load(KN) | Weight(kg) |
| LOPG-1 | Φ8-20 | 25 | 3.8 |
| LOPG-2 | Φ11-15 | 16 | 5.6 |
| LOPG-3 | Φ15-17 | 16 | 5.6 |
