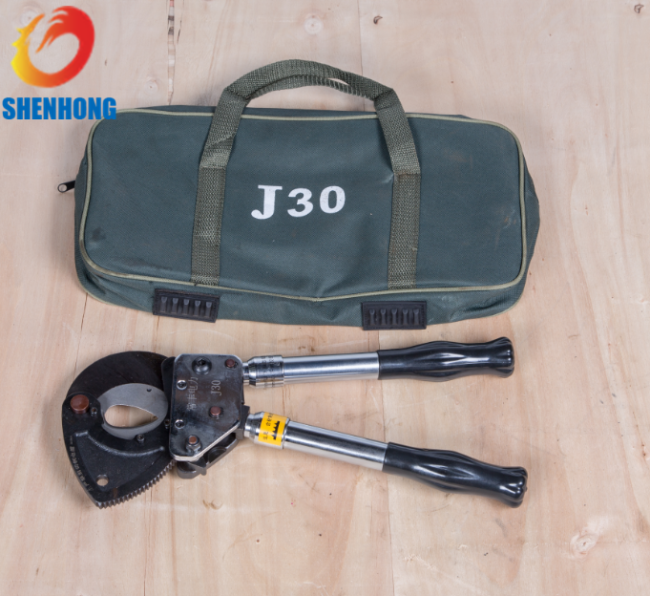

Power Construction Tools Hand Ratchet Cable Cutter J30 For Copper and Aluminum Cable
Price:
US $20-300 / Piece
MOQ:
1 piece
Delivery Time:
7 work days after deposit
Brand:
Shenhong
Product Description
Power Construction Machines and Tools Hand Ratchet Cable Cutter J30 For Copper&Aluminum Cable
| Model NO. | Specification | |
| J13 | Cutting Range | ACSR≤720mm2,Preetressed steel wire≤150mm2 |
| Weight | 1.95kg | |
| J30 | Cutting Range | ACSR≤630mm2,Preetressed steel wire≤100mm2 |
| Weight | 3.6kg | |
| J25 | Cutting Range | ACSR≤800mm2,Preetressed steel wire≤150mm2 |
| Weight | 3.45kg | |
| J50 | Cutting Range | ACSR≤1440mm2 |
| Weight | 3.2kg | |
| J14 | Cutting Range | steel wire rope≤20mm |
| Weight | 2kg | |
| J25A | Cutting Range | steel wire rope≤30mm |
| Weight | 3.55kg | |
| J33 | Cutting Range | steel wire rope≤33mm |
| Weight | 5.15kg | |
| J40A | Cutting Range | Copper&Aluminum Cable≤300mm2 |
| Weight | 1kg | |
| J40B | Cutting Range | Copper&Aluminum Cable≤240mm2 |
| Weight | 0.65kg | |
| J40C | Cutting Range |
For big blade,Copper&Aluminum Cable≤300mm2; For small blade,steel cable |
| Weight | 1.1kg | |
| J40D | Cutting Range | Copper&Aluminum Cable≤300mm2 |
| Weight | 1.05kg | |
| J40 | Cutting Range |
Copper&Aluminum Cable≤300mm2; 1000 pairs coommunication cable |
| Weight | 1.15kg | |
| J52 | Cutting Range | Copper&Aluminum Armoured Cable≤500mm2 |
| Weight | 3.1kg | |
| J75 | Cutting Range |
Copper&Aluminum Armoured Cable≤3*200mm2; Copper&Aluminum Armoured Cable≤75mm2; 3600 pairs coommunication cable |
| Weight | 3.6kg | |
| J95 | Cutting Range | Copper&Aluminum Armoured Cable≤3*185mm2; Copper&Aluminum Armoured Cable≤95mm2 |
| Weight | 5kg | |
| J100 | Cutting Range |
Copper&Aluminum Armoured Cable≤3*300mm2; Copper&Aluminum Armoured Cable≤100mm2 |
| Weight | 6.6kg | |
| J130 | Cutting Range | Copper&Aluminum Armoured Cable≤130mm2 |
| Weight | 8.3kg | |
| J160 | Cutting Range | Copper&Aluminum Armoured Cable≤160mm2 |
| Weight | 11.1kg | |
Application
1.Cutting the copper aluminum armoured cable
2.It could be operated by one hand only due to light weight;
3.The utility model has convenient operation, is labor saving and safe and can not damage cable wires and human bodies.
