SIPZ Underground Cable Installation Tools 5 tons Integrated Reel Stand With Disc Tension Brake SIPZ5A
Price:
US $400-1,500 / Set
MOQ:
1 set
Delivery Time:
15 work days after deposit
Brand:
Shenhong
Product Description

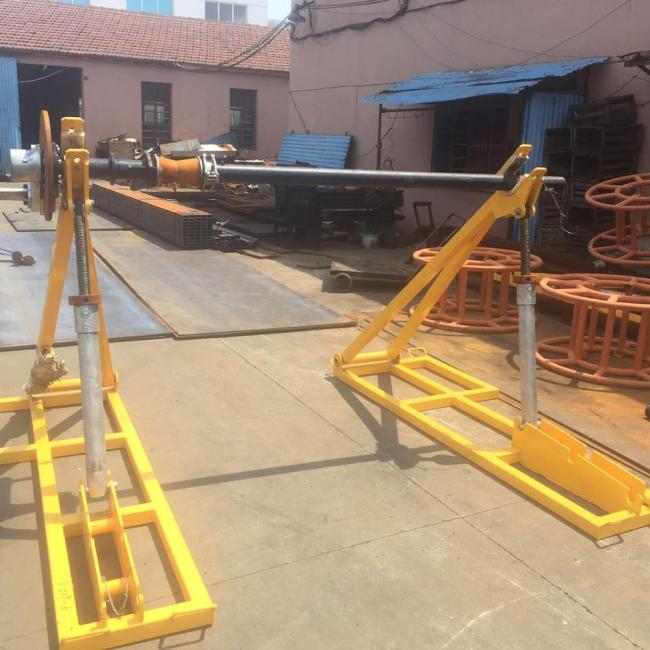

5 tons Integrated Reel Stand With Disc Tension Brake SIPZ5A can be diassembled into 3 pieces
Application
3-7T Integrated Reel Stand With Disc Tension Brake SIPZ Details is used to support reel in tension releasing wire or mechanically linepulling wire or machanically linepulling wire and to brake the reel.It is convenient transportation because it can be disassembled into 3 pieces.
Notes
SIPZ-7 is double disc brake.
Technical Data for 3-7T Integrated Reel Stand With Disc Tension Brake SIPZ Details
| Order number | 10604 | 10605 | 10606 | |
| Model | SIPZ3A | SIPZ5A | SIPZ-7 | |
| Applicable reel | Diameter of coil(mm) | Φ900~1600 | Φ1600~2400 | Φ1800~2500 |
| Width of coil(mm) | ≤1350 | ≤1350 | ≤1700 | |
| Diameter of axle hole(mm) | Φ65~100 | Φ65~100 | Φ120 | |
| Maximum weight(kg) | 3000 | 5000 | 7000 | |
| Brake torque(N.m) | 1000 | 1000 | 1000 | |
| Linespeed(m/min) | 80 | 80 | 80 | |
| Weight(kg) | 200 | 215 | 480 | |
